Arm Cylinder Seal Kit 707-98-04720 for KOMATSU exkavators

Price: €18.71 36.59лв.

Code:

707-98-04720
Weight:

0.120 Kgs

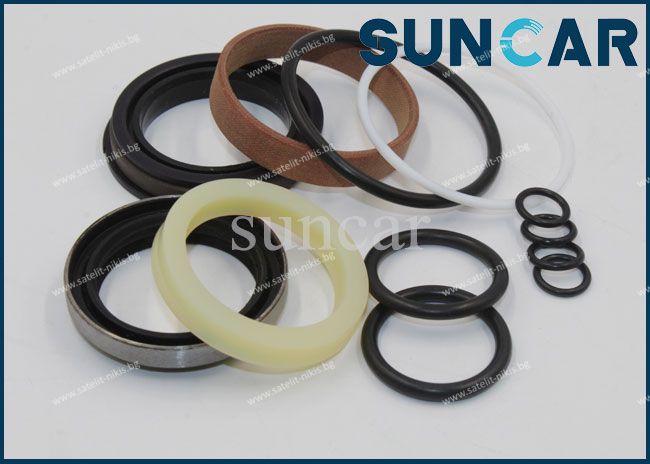

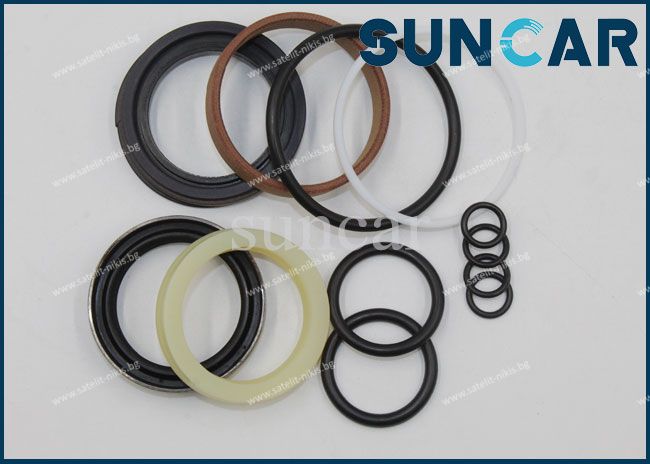

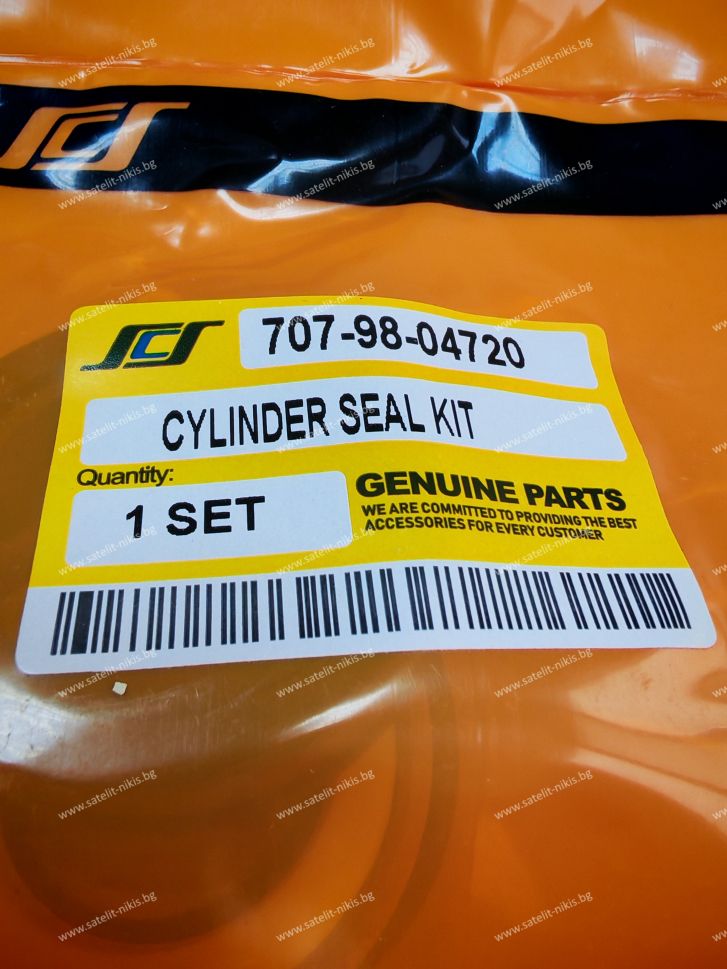

Repair kit for the arm cylinder of KOMATSU excavators.

Piston diameter (d): 30.00 mm

Cylinder diameter (D): 50.00 mm

Related products:

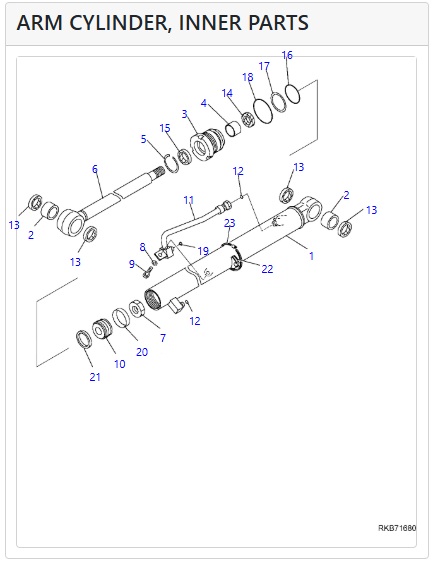

Pos.	Part No	Qty	Parts name
	707-00-0X220	[1]	ARM CYLINDER
1.	721-11-50630	[1]	CYLINDER
2.	707-76-30420	[2]	BUSHING
3.	707-29-50810	[1]	HEAD, CYLINDER
4.	07177-03025	[1]	BUSHING
5.	07179-12042	[1]	RING, SNAP
6.	721-68-30670	[1]	ROD, CYLINDER
7.	707-67-22010	[1]	NUT
8.	01643-11032	[1]	WASHER
9.	01010-81020	[1]	BOLT
10.	707-86-50070	[1]	PISTON
11.	707-86-39770	[1]	PIPE
11.	707-98-04720	[1]	KIT, GASKET
12	02896-11009	[2]	O-RING
13	07145-00030	[4]	SEAL, DUST
14	707-51-30210	[1]	RING
15	707-56-30510	[1]	RING
16	07000-13045	[1]	O-RING
17	707-35-52510	[1]	O-RING
18	07000-13048	[1]	O-RING
20	707-44-50180	[1]	RING
21	10E-63-32390	[1]	RING
22	22L-09-R8290	[1]	CLAMP
23	21D-09-81480	[1]	CLAMP

Suitable for KOMATSU:

PC14R-2,PC14R-3 HS,PC14R-3
