A5 wiper seals
Wipers type A5 are designed for rod application in hydraulic cylinders operating at medium loads. They have a stable sealing edge that effectively prevents the accumulation of external contaminants /moisture, dust, sand, mud, etc./ on the rod, their subsequent entry into the system and causing damage to the internal components of the cylinder. It is manufactured from polyurethane (PU93) as standard, and is available in a wide range of sizes. A5 type wiper is efficient, easy to install, has a simple design, good wear resistance and long service life. It needs to be used together with a suitable rod seal. It finds application in excavation, agricultural machinery, loading equipment, mobile platforms, telescopic cylinders and all kinds of standard cylinders.
Wiper seal A5 45x55x5.3/7 PU93 KVK/China
Product data
Ød=45 mm; ØD=55 mm; H=7 mm; L=5.3 mm; ØD1=55.6 mm; ØD2=48 mm; a=2 mm
Material: PU93
Application range (the following limit values cannot appear at the same time):
Speed: ≤ 2.0 m/s
Temperature: -35°C ~ +100°C
Media: mineral hydraulic oils, water-glycol hydraulic oils, emulsions
Manufacturer:
Zhongxingshun Sealing Products Factory
In stock 40 pcs.

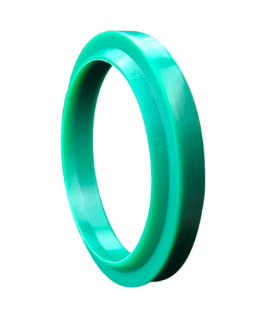

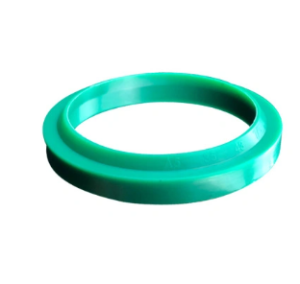

Wiper seal A5 28x36x5.3/7 PU93 KVK/China
Product data
Ød=28 mm; ØD=36 mm; H=7 mm; L=5.3 mm; ØD1=36.6 mm; ØD2=31 mm; a=2 mm
Material: PU93
Application range (the following limit values cannot appear at the same time):
Speed: ≤ 2.0 m/s
Temperature: -35°C ~ +100°C
Media: mineral hydraulic oils, water-glycol hydraulic oils, emulsions
Manufacturer:
Zhongxingshun Sealing Products Factory
In stock 48 pcs.
Wiper seal A5 22x30x5.3/7 PU93 KVK/China
Product data
Ød=22 mm; ØD=30 mm; H=7 mm; L=5.3 mm; ØD1=30.6 mm; ØD2=25 mm; a=2 mm
Material: PU93
Application range (the following limit values cannot appear at the same time):
Speed: ≤ 2.0 m/s
Temperature: -35°C ~ +100°C
Media: mineral hydraulic oils, water-glycol hydraulic oils, emulsions
Manufacturer:
Zhongxingshun Sealing Products Factory
In stock 41 pcs.
Wiper seal A5 50x60x5.3/7 PU93 KVK/China
Product data
Ød=50 mm; ØD=60 mm; H=7 mm; L=5.3 mm; ØD1=60.6 mm; ØD2=53 mm; a=2 mm
Material: PU93
Application range (the following limit values cannot appear at the same time):
Speed: ≤ 2.0 m/s
Temperature: -35°C ~ +100°C
Media: mineral hydraulic oils, water-glycol hydraulic oils, emulsions
Manufacturer:
Zhongxingshun Sealing Products Factory
In stock 20 pcs.
Wiper seal A5 60x70x5.3/7 PU93 KVK/China
Product data
Ød=60 mm ; ØD=70 mm ; H=7 mm ; L=5.3 mm ;ØD1=70.6 mm ; ØD2=63 mm a=2 mm
Material: PU93
Application range (the following limit values cannot appear at the same time):
Speed: ≤ 2.0 m/s
Temperature: -35°C ~ +100°C
Media: mineral hydraulic oils, water-glycol hydraulic oils, emulsions
Manufacturer:
Zhongxingshun Sealing Products Factory
In stock 16 pcs.
Wiper seal A5 35x43x5.3/7 PU93 KVK/China
Product data
Ød=35 mm ; ØD=43 mm ; H=7 mm ; L=5.3 mm ;ØD1=43.6 mm ; ØD2=38 mm a=2 mm
Material: PU93
Application range (the following limit values cannot appear at the same time):
Speed: ≤ 2.0 m/s
Temperature: -35°C ~ +100°C
Media: mineral hydraulic oils, water-glycol hydraulic oils, emulsions
Manufacturer:
Zhongxingshun Sealing Products Factory
In stock 95 pcs.
Wiper seal A5 95x103x5.3/7 PU93 KVK/China
Product data
Ød=95 mm ; ØD=103 mm ; H=7 mm ; L=5.3 mm ;ØD1=103.6 mm ; ØD2=98 mm a=2 mm
Material: PU93
Application range (the following limit values cannot appear at the same time):
Speed: ≤ 2.0 m/s
Temperature: -35°C ~ +100°C
Media: mineral hydraulic oils, water-glycol hydraulic oils, emulsions
Manufacturer:
Zhongxingshun Sealing Products Factory
In stock 10 pcs.
Wiper seal A5 45x53x5.3/7 PU93 KVK/China
Product data
Ød=55 mm ; ØD=65 mm ; H=7 mm ; L=5.3 mm ;ØD1=65.6 mm ; ØD2=58 mm a=2 mm
Material: PU93
Application range (the following limit values cannot appear at the same time):
Speed: ≤ 2.0 m/s
Temperature: -35°C ~ +100°C
Media: mineral hydraulic oils, water-glycol hydraulic oils, emulsions
Manufacturer:
Zhongxingshun Sealing Products Factory
In stock 30 pcs.
Wiper seal A5 45x53x5.3/7 PU93 KVK/China
Product data
Ød=45 mm ; ØD=53 mm ; H=7 mm ; L=5.3 mm ;ØD1=53.6 mm ; ØD2=48 mm a=2 mm
Material: PU93
Application range (the following limit values cannot appear at the same time):
Speed: ≤ 2.0 m/s
Temperature: -35°C ~ +100°C
Media: mineral hydraulic oils, water-glycol hydraulic oils, emulsions
Manufacturer:
Zhongxingshun Sealing Products Factory
In stock 52 pcs.
Wiper seal A5 100x108x5.3/7 PU93 KVK/China
Product data
Ød=100 mm ; ØD=108 mm ; H=7 mm ; L=5.3 mm ;ØD1=108.8 mm ; ØD2=103 mm a=2 mm
Material: PU93
Application range (the following limit values cannot appear at the same time):
Speed: ≤ 2.0 m/s
Temperature: -35°C ~ +100°C
Media: mineral hydraulic oils, water-glycol hydraulic oils, emulsions
Manufacturer:
Zhongxingshun Sealing Products Factory
In stock 20 pcs.
