TDP Pneumatic Piston Seals

Product data

ØD=70 mm ; Ød=12 mm ; H=22 mm

Material: NBR+metal

Application range (the following limit values cannot appear at the same time):

Pressure: ≤ 12 bar
Speed: ≤ 1.0 m/s
Temperature: -30°C ~ +80°C
Media: Oil-lubricated air, dry air and oil-free air (initial lubrication required during installation).

Manufacturer:

Zhongxingshun Sealing Products Factory

Product data

ØD=63 mm ; Ød=16 mm ; H=22 mm

Material: NBR+metal

Application range (the following limit values cannot appear at the same time):

Pressure: ≤ 12 bar
Speed: ≤ 1.0 m/s
Temperature: -30°C ~ +80°C
Media: Oil-lubricated air, dry air and oil-free air (initial lubrication required during installation).

Manufacturer:

Zhongxingshun Sealing Products Factory

Product data

ØD=50 mm ; Ød=16 mm ; H=20 mm

Material: NBR+metal

Application range (the following limit values cannot appear at the same time):

Pressure: ≤ 12 bar
Speed: ≤ 1.0 m/s
Temperature: -30°C ~ +80°C
Media: Oil-lubricated air, dry air and oil-free air (initial lubrication required during installation).

Manufacturer:

Zhongxingshun Sealing Products Factory

Product data

ØD=50 mm ; Ød=10 mm ; H=18 mm

Material: NBR+metal

Application range (the following limit values cannot appear at the same time):

Pressure: ≤ 12 bar
Speed: ≤ 1.0 m/s
Temperature: -30°C ~ +80°C
Media: Oil-lubricated air, dry air and oil-free air (initial lubrication required during installation).

Manufacturer:

Zhongxingshun Sealing Products Factory

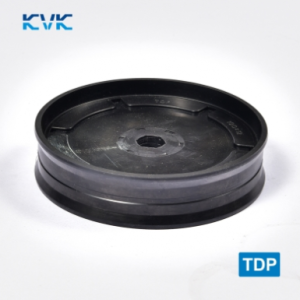

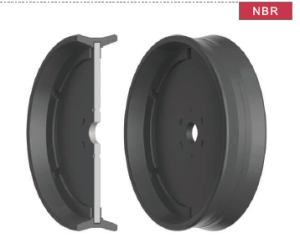

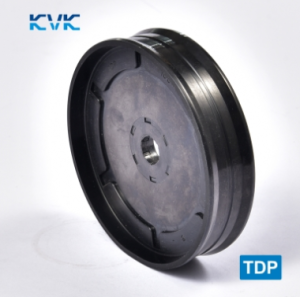

Product data

ØD=160 mm ; Ød=30 mm ; H=27 mm

Material: NBR+metal

Application range (the following limit values cannot appear at the same time):

Pressure: ≤ 12 bar
Speed: ≤ 1.0 m/s
Temperature: -30°C ~ +80°C
Media: Oil-lubricated air, dry air and oil-free air (initial lubrication required during installation).

Manufacturer:

Zhongxingshun Sealing Products Factory

Product data

ØD=100 mm ; Ød=20 mm ; H=26 mm

Material: NBR+metal

Application range (the following limit values cannot appear at the same time):

Pressure: ≤ 12 bar
Speed: ≤ 1.0 m/s
Temperature: -30°C ~ +80°C
Media: Oil-lubricated air, dry air and oil-free air (initial lubrication required during installation).

Manufacturer:

Zhongxingshun Sealing Products Factory

Product data

ØD=80 mm ; Ød=16 mm ; H=22.5 mm

Material: NBR+metal

Application range (the following limit values cannot appear at the same time):

Pressure: ≤ 12 bar
Speed: ≤ 1.0 m/s
Temperature: -30°C ~ +80°C
Media: Oil-lubricated air, dry air and oil-free air (initial lubrication required during installation).

Manufacturer:

Zhongxingshun Sealing Products Factory

Product data

ØD=100 mm ; Ød=16 mm ; H=25 mm

Material: NBR+metal

Application range (the following limit values cannot appear at the same time):

Pressure: ≤ 12 bar
Speed: ≤ 1.0 m/s
Temperature: -30°C ~ +80°C
Media: Oil-lubricated air, dry air and oil-free air (initial lubrication required during installation).

Manufacturer:

Zhongxingshun Sealing Products Factory

Product data

ØD=125 mm ; Ød=20 mm ; H=26 mm ; Ød1=96 mm ; h=10 mm ; S=8.8 mm

Material: NBR+metal

Application range (the following limit values cannot appear at the same time):

Pressure: ≤ 12 bar
Speed: ≤ 1.0 m/s
Temperature: -30°C ~ +80°C
Media: Oil-lubricated air, dry air and oil-free air (initial lubrication required during installation).

Manufacturer:

Zhongxingshun Sealing Products Factory

Product data

ØD=100 mm ; Ød=12 mm ; H=25 mm

Material: NBR+metal

Application range (the following limit values cannot appear at the same time):

Pressure: ≤ 12 bar
Speed: ≤ 1.0 m/s
Temperature: -30°C ~ +80°C
Media: Oil-lubricated air, dry air and oil-free air (initial lubrication required during installation).

Manufacturer:

Zhongxingshun Sealing Products Factory
