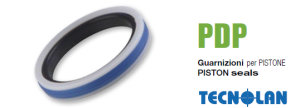

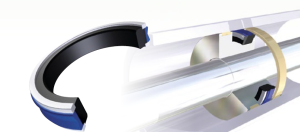

Hydraulic piston seal type PDP
Hydraulic seal type PDP is designed for use in piston applications of double-acting hydraulic cylinders operating under high loads.
Standardly manufactured: outer seal made of polyurethane (PU), sealing ring made of oil-resistant NBR rubber with a hardness of 80 Shore and two support rings made of thermoplastic elastomer.
The double-acting seal type PDP offers a simple design, very good anti-friction action with a low friction coefficient and excellent sealing properties even with sudden pressure surges. It is suitable for high operating speeds and is a very economical solution thanks to its long service life.
It is manufactured in a wide range of metric and inch sizes.
PDP can be safely used in the mining industry, in construction machinery and earthmoving machinery. It is recommended to be installed in combination with at least one guide element, depending on the operating conditions.
Hydraulic piston seal PDP-121 115x100x12.5 NBR+PU+POM up to 400 bar GUARNITEC/Italy
Product data
D=115 mm; d=100 mm; H=12.5 mm; S=5 mm; F=114 mm
Material: NBR/PU/POM
Application range (the following limit values cannot appear at the same time):
Pressure: ≤ 400 bar
Speed: ≤ 0.5 m/s
Temperature: -30°C +110°C ; -50°C +110°C TDS 108
Media: mineral-based hydraulic oils
Manufacturer:
GUARNITEC S.r.l.
100% Made in Italy
For delivery options to your country, please do not hesitate to contact us!
Product photos are for illustrative purposes and may differ from the actual appearance of the item. This does not affect the characteristics of the product.
In stock 5 pcs.
Hydraulic piston seal PDP-119/1 105x90x12.5 NBR+PU+POM up to 400 bar GUARNITEC/Italy
Product data
D=105 mm; d=90 mm; H=12.5 mm; S=5 mm; F=104 mm
Material: NBR/PU/POM
Application range (the following limit values cannot appear at the same time):
Pressure: ≤ 400 bar
Speed: ≤ 0.5 m/s
Temperature: -30°C +110°C ; -50°C +110°C TDS 108
Media: mineral-based hydraulic oils
Manufacturer:
GUARNITEC S.r.l.
100% Made in Italy
For delivery options to your country, please do not hesitate to contact us!
Product photos are for illustrative purposes and may differ from the actual appearance of the item. This does not affect the characteristics of the product.
In stock 10 pcs.
Hydraulic piston seal PDP-114 80x65x12.5 NBR+PU+POM up to 400 bar GUARNITEC/Italy
Product data
D=80 mm; d=65 mm; H=12.5 mm; S=5 mm; F=79 mm
Material: NBR/PU/POM
Application range (the following limit values cannot appear at the same time):
Pressure: ≤ 400 bar
Speed: ≤ 0.5 m/s
Temperature: -30°C +110°C ; -50°C +110°C TDS 108
Media: mineral-based hydraulic oils
Manufacturer:
GUARNITEC S.r.l.
100% Made in Italy
For delivery options to your country, please do not hesitate to contact us!
Product photos are for illustrative purposes and may differ from the actual appearance of the item. This does not affect the characteristics of the product.
In stock 10 pcs.
Hydraulic piston seal PDP-120 110x95x12.5 NBR+PU+POM up to 400 bar GUARNITEC/Italy, KOMATSU 707-44-11080,707-44-11180,707-44-11150
Product data
D=110 mm; d=95 mm; H=12.5 mm; S=5 mm; F=109 mm
Material: NBR/PU/POM
Application range (the following limit values cannot appear at the same time):
Pressure: ≤ 400 bar
Speed: ≤ 0.5 m/s
Temperature: -30°C +110°C ; -50°C +110°C TDS 108
Media: mineral-based hydraulic oils
OE references:
707-44-11080,707-44-11180,707-44-11150
Suitable for Komatsu:
Backhoeloaders/Багер-товарачи:
WB140-2WB140-2T
Buldozers/ Булдозери:
D40PF-5D41A-6D41E-6D41E-6KD41E-6TD41E-BB-6CD41E6TD41P-6D41P-6KD41PF-6D41PF-6KD41PF-6K-T2D60A-11D60A-11DD60A-8D60E-8D60P-11D60P-11DD60P-8D60PL-8D61E-12D61EX-12D61EX-12A-WD61EX-15D61EX-15E0-BWD61PX-12D61PX-12A-WD61PX-15D61PX-15E0-BWD63E-12D65A-11D65A-11DD65A-8D65E-8D65P-11D65P-11DD65P-8D68ESS-12E0D70-LED70-LE SERIAL NUMBERS J10001 AND UPD70LE-8D75A-1D85A-21D85A-21-ED85A-21AD85A-21BD85A-21B-ERD85E-21D85P-21D85P-21-ED85P-21-EPD85P-21A
Compactors/Уплътняващи машини:
WF550-3DWF550T-3WF550T-3AWF550T-3D
Cranes/Кранове:
LW250-5HLW250-5X
Crawler Carriers/Верижни претоварачи:
CD60R-1CD60R-1ACD60R-1B
Crawler Loaders/ Верижни товарачи:
D68ESS-12
Drum Trucks/Самосвали:
330MHD785-3HD785-5HD785-5LC A10224, A10228 - A10315 KOMATSU (BEPB010709) BFP42-05HD785-5LCHD785-7HD985-3HD985-5HM300-1HM300-1LHM300-2HM300-2 s/n A11001 and upHM300-2RHM300TN-1HM350-1HM350-1LHM350-2HM350-2R
Exavators /Багери:
PC100N-6PC150-5PC150-6KPC150LC-6KPC160-6KPC160LC-7PC160LC-7KPC160LC-7K-KAPC180LC-5KPC180LC-6KPC180LC-7KPC180LLC-5KPC180NLC-5KPC180NLC-6KPC180NLC-7KPC200-3PC200EL-6KPC200EN-6KPC200LC-3PC400LC-6ZPC40MR-1PC40MR-2PC40MR-2-ACPC40R-8PC45MR-1PC45MR-3PC45R-8PC50MR-2PC50MR-2-ACPC50UU-2PC55MR-3PC75UU-1PC75UU-2PC75UU-2EPC75UU-3PC78UU-6PF5-1PF5LC-1PW128UU-1PW150-1PW150ES-6KPW160-7PW160-7E0PW160-7KPW170-5KPW170ES-6KPW170ES-6K-KAPW180-7E0PW200-1PW210-1PC78UU-8PW160-8
Graders/ Грейдери:
GD705A-4GD705A-4A
Lime Spreaders/Разпръсквачки на вар:
Mobile Crushersand Recyclers/Мобилни дробилки и рециклиращи машини:
BM020C-1BR200T-1BR200T-1A
Others/ Други:
BF60-1BP500-3
Wheel Dozers/Колесни булдозери:
WD500-3
Wheel Loaders/ Колесни товарачи:
510-1WA100-3-HWA100-3AWA120-1WA120-3MCWA120L-3WA150-3WA150-3-SNWA150-3-XWA150-5WA150-5-AWA150-5-CNWA150-5-SSWA150-5-TKWA150-6WA150L-5WA150PZ-5WA150PZ-6WA180-3WA180-3LWA180L-3WA180PT-3WA200-1WA250PT-3WA250PT-3LWA270PT-3 activeWA500-1WA500-1LWA500-1LCWA500-1LEWA500-3WA500-3HWA500-3LWA500-3LKWR8-1
Manufacturer:
GUARNITEC S.r.l.
100% Made in Italy
For delivery options to your country, please do not hesitate to contact us!
Product photos are for illustrative purposes and may differ from the actual appearance of the item. This does not affect the characteristics of the product.
In stock 10 pcs.
Hydraulic piston seal PDP-112 75x60x10.5/11 NBR+PU+POM up to 400 bar GUARNITEC/Italy , KOMATSU 707-44-75150,707-44-75180
Product data
D=75 mm; d=60 mm; H=11 mm; S=5 mm; F=74.3 mm
Material: NBR/PU/POM
Application range (the following limit values cannot appear at the same time):
Pressure: ≤ 400 bar
Speed: ≤ 0.5 m/s
Temperature: -30°C +110°C ; -50°C +110°C TDS 108
Media: mineral-based hydraulic oils
Suitable for KOMATSU models:
Buldozers:D31EX-21D31EX-21A-MD31EX-22D31PX-21D31PX-21AD31PX-21A-MD31PX-22D37EX-21D37EX-21AD37EX-21A-MD37EX-22D37PX-21D37PX-21AD37PX-21A-MD37PX-22D39EX-22D39PX-22
Crawler Loaders: WA380-6WA40-3-CBWA40-3-CNWA40-3-XWA430-6WA50-3WA50-3-CBWA50-3-CNWA50-3-XWA50-6
Drum Trucks:HD325-6HD325-6WHD325-7HD325-7RHD405-6HD405-7HD405-7R
Exavators:PC10N-7PC12UU-2PC15-3PC20-6PC20-7PC20MR-1PC25-1PC25R-1PC25R-8PC27MR-1PC27MR-2PC27MR-2-APC27MR-2-BPC27MR-3PC27MRX-1PC27R-8PC28UD-2PC28UG-2PC28UU-1PC28UU-2PC28UU-3PC30-6PC30-7PC30MR-1PC30MR-2PC30MR-2-APC30MR-2-BPC30MR-2-CPC30MR-2-DPC30MR-3PC30MR-3(JPN)-FOR CABPC30MR-3(JPN)-FOR CANOPYPC30MRX-1PC30R-7PC30R-8PC30UU-3PC35MR-1PC35MR-2PC35MR-2-APC35MR-2-BPC35MR-3PC35MR-3(JPN)-FOR CABPC35MR-3(JPN)-FOR CANOPYPC35MRX-1APC35R-8PC38UU-1PC38UU-3PC40-7PC400LC-6ZPC40MR-1PC40MRX-1PC40R-7PC40T-7PC45MR-1PC45MRX-1PC45R-8PC50MR-2PC50MR-2-ACPC50UU-2PC55MR-3PC58UU-3PC75UU-2PC75UU-2EPC75UU-3
Wheel Loaders:WA380-6WA40-3-CBWA40-3-CNWA40-3-XWA430-6WA50-3WA50-3-CBWA50-3-CNWA50-3-XWA50-6
Manufacturer:
GUARNITEC S.r.l.
100% Made in Italy
For delivery options to your country, please do not hesitate to contact us!
Product photos are for illustrative purposes and may differ from the actual appearance of the item. This does not affect the characteristics of the product.
In stock 20 pcs.
Hydraulic piston seal PDP-109 65x50x11 NBR+PU+POM up to 400 bar GUARNITEC/Italy
Product data
D=65 mm; d=50 mm; H=11 mm; S=5 mm; F=64.3 mm
Material: NBR/PU/POM
Application range (the following limit values cannot appear at the same time):
Pressure: ≤ 400 bar
Speed: ≤ 0.5 m/s
Temperature: -30°C +110°C ; -50°C +110°C TDS 108
Media: mineral-based hydraulic oils
Manufacturer:
GUARNITEC S.r.l.
100% Made in Italy
For delivery options to your country, please do not hesitate to contact us!
Product photos are for illustrative purposes and may differ from the actual appearance of the item. This does not affect the characteristics of the product.
In stock 6 pcs.
Hydraulic piston seal PDP-107 63x48x11 NBR+PU+POM up to 400 bar GUARNITEC/Italy
Product data
D=63 mm; d=48 mm; H=11 mm; S=5 mm; F=62.3 mm
Material: NBR/PU/POM
Application range (the following limit values cannot appear at the same time):
Pressure: ≤ 400 bar
Speed: ≤ 0.5 m/s
Temperature: -30°C +110°C ; -50°C +110°C TDS 108
Media: mineral-based hydraulic oils
Manufacturer:
GUARNITEC S.r.l.
100% Made in Italy
For delivery options to your country, please do not hesitate to contact us!
Product photos are for illustrative purposes and may differ from the actual appearance of the item. This does not affect the characteristics of the product.
In stock 8 pcs.
Hydraulic piston seal PDP-104 55x41x9 NBR+PU+POM up to 400 bar GUARNITEC/Italy
Product data
D=55 mm; d=41 mm; H=9 mm; S=5 mm; F=54.3 mm
Material: NBR/PU/POM
Application range (the following limit values cannot appear at the same time):
Pressure: ≤ 400 bar
Speed: ≤ 0.5 m/s
Temperature: -30°C +110°C ; -50°C +110°C TDS 108
Media: mineral-based hydraulic oils
Manufacturer:
GUARNITEC S.r.l.
100% Made in Italy
For delivery options to your country, please do not hesitate to contact us!
Product photos are for illustrative purposes and may differ from the actual appearance of the item. This does not affect the characteristics of the product.
In stock 1 pcs.
Hydraulic piston seal PDP-115 80x65x11 NBR+PU+POM up to 400 bar GUARNITEC/Italy
Product data
D=80 mm ; d=65 mm ; H=11 mm ; A=5 mm ; F=79 mm
Material: NBR/PU/POM
Application range (the following limit values cannot appear at the same time):
Pressure: ≤ 400 bar
Speed: ≤ 0.5 m/s
Temperature: -30°C +110°C ; -50°C +110°C TDS 108
Media: mineral-based hydraulic oils
Manufacturer:
GUARNITEC S.r.l.
100% Made in Italy
For delivery options to your country, please do not hesitate to contact us!
Product photos are for illustrative purposes and may differ from the actual appearance of the item. This does not affect the characteristics of the product.
In stock 1 pcs.
Hydraulic piston seal PDP 118 95x80x11 NBR+PU+POM up to 400 bar GUARNITEC/Italy
Product data
D=95 mm ; d=80 mm ; H=11 mm ; A=5 mm ; F=94 mm
Material: NBR/PU/POM
Application range (the following limit values cannot appear at the same time):
Pressure: ≤ 400 bar
Speed: ≤ 0.5 m/s
Temperature: -30°C +110°C ; -50°C +110°C TDS 108
Media: mineral-based hydraulic oils
Manufacturer:
GUARNITEC S.r.l.
100% Made in Italy
For delivery options to your country, please do not hesitate to contact us!
Product photos are for illustrative purposes and may differ from the actual appearance of the item. This does not affect the characteristics of the product.
In stock 2 pcs.
