GKM back-up rings (metric)

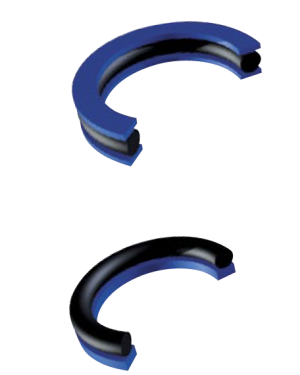

The GKM series by Guarnitec offer a list of special profile static back-up rings designed for high-pressure performance. GKM seals are primarily designed for static applications where the seal remains stationary within a joint or assembly, although they can be used in dynamic sealing functions as well, offering reliable sealing over extended periods. They are characterized by their ability to maintain a seal even under high pressure conditions and are often chosen over O-rings in certain applications because they are less prone to disruptions caused by rolling.
GKM seals are produced in metric sizes.
Material: TPE
Working pressure, static radial sealing: up to 400 bar (O-ring + GKM)
Working pressure, dynamic radial sealing: up to 500 bar (O-ring + GKM)
Dynamic speed: up to 0.5 m/s
Rotational speed: up to 2 m/s
Working temperature: -40°C ~ +140°C
Working media: mineral oils
Back-up ring GKM 50x60x1.7 TPE Guarnitec/Italy , GKM 15056
Product data
d=50 mm; D=60 mm; h=1.7 mm; H1=9.5 mm; H2=11.5 mm: O-ring: 49.2x5.7 mm
Material: TPE
Working pressure, static radial sealing: up to 400 bar (O-ring + GKM)
Working pressure, dynamic radial sealing: up to 500 bar (O-ring + GKM)
Dynamic speed: up to 0.5 m/s
Rotational speed: up to 2 m/s
Working temperature: -40°C ~ +140°C
Working media: mineral oils
Manufacturer:
GUARNITEC S.r.l.
100% Made in Italy
For delivery options to your country, please do not hesitate to contact us!
Product photos are for illustrative purposes and may differ from the actual appearance of the item. This does not affect the characteristics of the product.
In stock 194 pcs.
Back-up ring GKM 65x75x1.7 TPE Guarnitec/Italy , GKM 15060
Product data
d=65 mm; D=75 mm; h=1.7 mm; H1=9.5 mm; H2=11.5 mm: O-ring: 64.2x5.7 mm
Material: TPE
Working pressure, static radial sealing: up to 400 bar (O-ring + GKM)
Working pressure, dynamic radial sealing: up to 500 bar (O-ring + GKM)
Dynamic speed: up to 0.5 m/s
Rotational speed: up to 2 m/s
Working temperature: -40°C ~ +140°C
Working media: mineral oils
Manufacturer:
GUARNITEC S.r.l.
100% Made in Italy
For delivery options to your country, please do not hesitate to contact us!
Product photos are for illustrative purposes and may differ from the actual appearance of the item. This does not affect the characteristics of the product.
In stock 96 pcs.
Back-up ring GKM 70x75x1.3 TPE Guarnitec/Italy , GKM 15034
Product data
d=70 mm; D=75 mm; h=1.3 mm; H1=5.3 mm; H2=6.6 mm: O-ring: 69.5x3 mm
Material: TPE
Working pressure, static radial sealing: up to 400 bar (O-ring + GKM)
Working pressure, dynamic radial sealing: up to 500 bar (O-ring + GKM)
Dynamic speed: up to 0.5 m/s
Rotational speed: up to 2 m/s
Working temperature: -40°C ~ +140°C
Working media: mineral oils
Manufacturer:
GUARNITEC S.r.l.
100% Made in Italy
For delivery options to your country, please do not hesitate to contact us!
Product photos are for illustrative purposes and may differ from the actual appearance of the item. This does not affect the characteristics of the product.
In stock 91 pcs.
Back-up ring GKM 80x90x1.7 TPE Guarnitec/Italy , GKM 15064
Product data
d=80 mm; D=90 mm; h=1.7 mm; H1=9.5 mm; H2=11.5 mm: O-ring: 79.2x5.7 mm
Material: TPE
Working pressure, static radial sealing: up to 400 bar (O-ring + GKM)
Working pressure, dynamic radial sealing: up to 500 bar (O-ring + GKM)
Dynamic speed: up to 0.5 m/s
Rotational speed: up to 2 m/s
Working temperature: -40°C ~ +140°C
Working media: mineral oils
Manufacturer:
GUARNITEC S.r.l.
100% Made in Italy
For delivery options to your country, please do not hesitate to contact us!
Product photos are for illustrative purposes and may differ from the actual appearance of the item. This does not affect the characteristics of the product.
In stock 185 pcs.
Back-up ring GKM 90x95x1.3 TPE Guarnitec/Italy , GKM 15039
Product data
d=90 mm; D=95 mm; h=1.3 mm; H1=5.3 mm; H2=6.6 mm: O-ring: 89.5x3 mm
Material: TPE
Working pressure, static radial sealing: up to 400 bar (O-ring + GKM)
Working pressure, dynamic radial sealing: up to 500 bar (O-ring + GKM)
Dynamic speed: up to 0.5 m/s
Rotational speed: up to 2 m/s
Working temperature: -40°C ~ +140°C
Working media: mineral oils
Manufacturer:
GUARNITEC S.r.l.
100% Made in Italy
For delivery options to your country, please do not hesitate to contact us!
Product photos are for illustrative purposes and may differ from the actual appearance of the item. This does not affect the characteristics of the product.
In stock 140 pcs.
Back-up ring GKM 95x100x1.3 TPE Guarnitec/Italy , GKM 15041
Product data
d=95 mm; D=100 mm; h=1.3 mm; H1=5.3 mm; H2=6.6 mm: O-ring: 94.5x3 mm
Material: TPE
Working pressure, static radial sealing: up to 400 bar (O-ring + GKM)
Working pressure, dynamic radial sealing: up to 500 bar (O-ring + GKM)
Dynamic speed: up to 0.5 m/s
Rotational speed: up to 2 m/s
Working temperature: -40°C ~ +140°C
Working media: mineral oils
Manufacturer:
GUARNITEC S.r.l.
100% Made in Italy
For delivery options to your country, please do not hesitate to contact us!
Product photos are for illustrative purposes and may differ from the actual appearance of the item. This does not affect the characteristics of the product.
In stock 100 pcs.
Back-up ring GKM 115x125x1.7 TPE Guarnitec/Italy, GKM 15071
Product data
d=115 mm; D=125 mm; h=1.7 mm; H1=9.5 mm; H2=11.5 mm; O-ring: 114.3x5.7 mm
Material: TPE
Working pressure, static radial sealing: up to 400 bar (O-ring + GKM)
Working pressure, dynamic radial sealing: up to 500 bar (O-ring + GKM)
Dynamic speed: up to 0.5 m/s
Rotational speed: up to 2 m/s
Working temperature: -40°C ~ +140°C
Working media: mineral oils
Manufacturer:
GUARNITEC S.r.l.
100% Made in Italy
For delivery options to your country, please do not hesitate to contact us!
Product photos are for illustrative purposes and may differ from the actual appearance of the item. This does not affect the characteristics of the product.
In stock 17 pcs.
Back-up ring GKM 120x130x1.7 TPE Guarnitec/Italy, GKM 15072
Product data
d=120 mm; D=130 mm; h=1.7 mm; H1=9.5 mm; H2=11.5 mm
Material: TPE
Working pressure, static radial sealing: up to 400 bar (O-ring + GKM)
Working pressure, dynamic radial sealing: up to 500 bar (O-ring + GKM)
Dynamic speed: up to 0.5 m/s
Rotational speed: up to 2 m/s
Working temperature: -40°C ~ +140°C
Working media: mineral oils
Manufacturer:
GUARNITEC S.r.l.
100% Made in Italy
For delivery options to your country, please do not hesitate to contact us!
Product photos are for illustrative purposes and may differ from the actual appearance of the item. This does not affect the characteristics of the product.
In stock 44 pcs.
Back-up ring GKM 115x120x1.3 TPE Guarnitec/Italy, GKM 15046
Product data
d=115 mm; D=120 mm; h=1.3 mm; H1=5.3 mm; H2=6.6 mm
Material: TPE
Working pressure, static radial sealing: up to 400 bar (O-ring + GKM)
Working pressure, dynamic radial sealing: up to 500 bar (O-ring + GKM)
Dynamic speed: up to 0.5 m/s
Rotational speed: up to 2 m/s
Working temperature: -40°C ~ +140°C
Working media: mineral oils
Manufacturer:
GUARNITEC S.r.l.
100% Made in Italy
For delivery options to your country, please do not hesitate to contact us!
Product photos are for illustrative purposes and may differ from the actual appearance of the item. This does not affect the characteristics of the product.
In stock 45 pcs.
Back-up ring GKM 7x11x1.3 TPE Guarnitec/Italy
Product data
d=7 mm; D=11 mm; h=1.3 mm; H1=4.5 mm; H2=5.8 mm
Material: TPE
Working pressure, static radial sealing: up to 400 bar (O-ring + GKM)
Working pressure, dynamic radial sealing: up to 500 bar (O-ring + GKM)
Dynamic speed: up to 0.5 m/s
Rotational speed: up to 2 m/s
Working temperature: -40°C ~ +140°C
Working media: mineral oils
Manufacturer:
GUARNITEC S.r.l.
100% Made in Italy
For delivery options to your country, please do not hesitate to contact us!
Product photos are for illustrative purposes and may differ from the actual appearance of the item. This does not affect the characteristics of the product.
In stock 50 pcs.
