- Advanced Material Engineering: Backed by dedicated research units, KVK continuous to innovate in high-grade elastomer synthesis, ensuring maximum hydraulic fluid resistance and high tensile strength under load.
- Colossal Warehousing Capabilities: Operating as a main production and logistics hub, the factory holds vast baseline stock volumes, empowering "Satelit Nikis" to secure even the most specialized and rare sealing dimensions rapidly.
- Strict Quality Metrics: All manufacturing operations strictly mirror the global quality framework of ISO 9001, guaranteeing crisp sealing lip geometries and zero defects.
875
products
Products
Back-up ring F4 100x110x1.5 PTFE KVK/China
Product data
Ød=100 mm ; ØD=110 mm ; T=1.5 mm
Material: Polytetrafluoroethylene (Teflon) PTFE
Application range (the following limit values cannot appear at the same time):
Speed: = 0 m/s (static seal)
Temperature: -30°C ~ +100°C
Media: mineral-based hydraulic oils and emulsions
Manufacturer:
Zhongxingshun Sealing Products Factory
In stock 3 pcs.
Back-up ring F4 100x105x1.25 PTFE KVK/China
Product data
Ød=100 mm ; ØD=105 mm ; T=1.25 mm
Material: Polytetrafluoroethylene (Teflon) PTFE
Application range (the following limit values cannot appear at the same time):
Speed: = 0 m/s (static seal)
Temperature: -30°C ~ +100°C
Media: mineral-based hydraulic oils and emulsions
Manufacturer:
Zhongxingshun Sealing Products Factory
In stock 17 pcs.

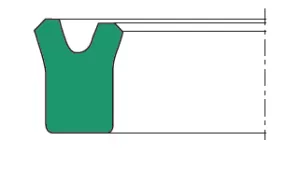

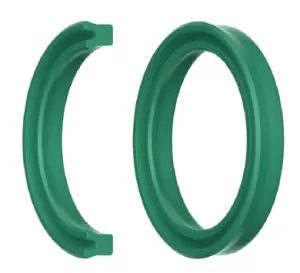

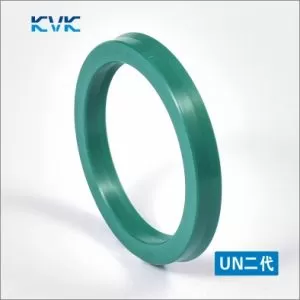

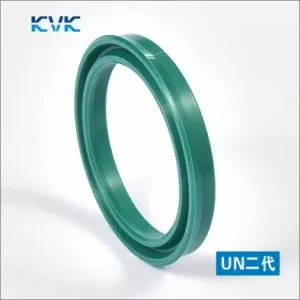

Hydraulic piston and rod seal UN 100x115x12 PU93 up to 320 bar KVK/China
Product data
Ød=100 mm; ØD=115 mm; h=12 mm
Material: PU93
Application range (the following limit values cannot appear at the same time):
Pressure: ≤ 320 bar; when the pressure is higher than 200 bar, it is recommended to use a back-up ring
Speed: ≤ 0.8 m/s
Temperature: -30°C ~ +80°C
Media: mineral-based hydraulic oils and emulsions; not suitable for environmetally-friendly oils (bio oils)
Manufacturer:
Zhongxingshun Sealing Products Factory
In stock 13 pcs.
Hydraulic piston and rod seal UPH 100x120x12 NBR90 up to 210 bar KVK/China
Product data
The hydraulic seal UPH has a symmetrical design and is suitable for both piston and rod.
Ød=100 mm ; ØD=120 mm ; h=12 mm ; ØD1=118 mm ; HA =13 mm ; HB = 16 mm ; C =5 mm
Material: NBR90
Application range (the following limit values cannot appear at the same time):
Pressure: ≤ 210 bar; when the pressure is higher than 150 bar, it is recommended to use a back-up ring
Speed: ≤ 0.5 m/s
Temperature: -30°C ~ +100°C
Media: mineral-based hydraulic oils and emulsions; not suitable for environmetally-friendly oils (bio oils)
Manufacturer:
Zhongxingshun Sealing Products Factory
In stock 8 pcs.
Hydraulic piston and rod seal UN 140x165x15PU93 up to 320 bar KVK/China
Product data
Ød=140 mm; ØD=165 mm; h=15 mm
Material: PU93
Application range (the following limit values cannot appear at the same time):
Pressure: ≤ 320 bar; when the pressure is higher than 200 bar, it is recommended to use a back-up ring
Speed: ≤ 0.8 m/s
Temperature: -30°C ~ +80°C
Media: mineral-based hydraulic oils and emulsions; not suitable for environmetally-friendly oils (bio oils)
Manufacturer:
Zhongxingshun Sealing Products Factory
In stock 18 pcs.
Hydraulic piston and rod seal USH 14x22x5 NBR90 up to 210 bar KVK/China
Product data
The hydraulic seal USH has a symmetrical design and is suitable for both piston and rod.
Ød=14 mm ; ØD=22 mm ; h=5 mm ; ØD1=21 mm ; HA =5.7 mm ; HB = 7.7 mm ; C =2 mm
Material: NBR90
Application range (the following limit values cannot appear at the same time):
Pressure: ≤ 210 bar; when the pressure is higher than 150 bar, it is recommended to use a back-up ring
Speed: ≤ 0.5 m/s
Temperature: -30°C ~ +100°C
Media: mineral-based hydraulic oils and emulsions; not suitable for environmetally-friendly oils (bio oils)
Manufacturer:
Zhongxingshun Sealing Products Factory
In stock 60 pcs.
Hydraulic piston and rod seal UN 16x22x7 PU93 up to 320 bar KVK/China
Product data
Ød=16 mm; ØD=22 mm; h=7 mm
Material: PU93
Application range (the following limit values cannot appear at the same time):
Pressure: ≤ 320 bar; when the pressure is higher than 200 bar, it is recommended to use a back-up ring
Speed: ≤ 0.8 m/s
Temperature: -30°C ~ +80°C
Media: mineral-based hydraulic oils and emulsions; not suitable for environmetally-friendly oils (bio oils)
Manufacturer:
Zhongxingshun Sealing Products Factory
In stock 30 pcs.
Hydraulic piston and rod seal USH 16x24x4.7 NBR90 up to 210 bar KVK/China
Product data
The hydraulic seal USH has a symmetrical design and is suitable for both piston and rod.
Ød=16 mm ; ØD=24 mm ; h=4.7 mm ; ØD1=23 mm ; HA =5.3 mm ; HB = 6.9 mm ; C =2 mm
Material: NBR90
Application range (the following limit values cannot appear at the same time):
Pressure: ≤ 210 bar; when the pressure is higher than 150 bar, it is recommended to use a back-up ring
Speed: ≤ 0.5 m/s
Temperature: -30°C ~ +100°C
Media: mineral-based hydraulic oils and emulsions; not suitable for environmetally-friendly oils (bio oils)
Manufacturer:
Zhongxingshun Sealing Products Factory
In stock 13 pcs.
Hydraulic piston and rod seal USH 170x185x9 NBR90 up to 210 bar KVK/China
Product data
The hydraulic seal USH has a symmetrical design and is suitable for both piston and rod.
Ød=170 mm ; ØD=185 mm ; h=9 mm ; ØD1=183 mm ; HA =10 mm ; HB = 14 mm ; C =4 mm
Material: NBR90
Application range (the following limit values cannot appear at the same time):
Pressure: ≤ 210 bar; when the pressure is higher than 150 bar, it is recommended to use a back-up ring
Speed: ≤ 0.5 m/s
Temperature: -30°C ~ +100°C
Media: mineral-based hydraulic oils and emulsions; not suitable for environmetally-friendly oils (bio oils)
Manufacturer:
Zhongxingshun Sealing Products Factory
In stock 8 pcs.
Hydraulic piston and rod seal UPH 20x30x8 NBR90 up to 210 bar KVK/China
Product data
The hydraulic seal UPH has a symmetrical design and is suitable for both piston and rod.
Ød=20 mm ; ØD=30 mm ; h=8 mm ; ØD1=29 mm ; HA =9 mm ; HB = 11 mm ; C =3.5 mm
Material: NBR90
Application range (the following limit values cannot appear at the same time):
Pressure: ≤ 210 bar; when the pressure is higher than 150 bar, it is recommended to use a back-up ring
Speed: ≤ 0.5 m/s
Temperature: -30°C ~ +100°C
Media: mineral-based hydraulic oils and emulsions; not suitable for environmetally-friendly oils (bio oils)
Manufacturer:
Zhongxingshun Sealing Products Factory
In stock 100 pcs.
