Universal piston and rod hydraulic seal USH
USH is a symmetrical hydraulic seal that can be used for both piston and rod in the hydraulic cylinder. This type of seal has a smaller cross section than UPH and can fit in the integral groove. It can be made of nitrile rubber or fluororubber, which provides a wider range of operating temperature.
Operating pressure: ≤210 bar. To prevent extrusion, when the pressure is higher than 150 bar, it is recommended to use a back-up ring at the base of the seal.
Operating temperature:
Standard type (NBR material): -30°C ~ +100°C
Temperature resistant type (FKM material): -10°C ~ +150°C
Reciprocating speed: ≤0.5 m/s
Media:
NBR - mineral hydraulic oils, water-glycol hydraulic oils, emulsions
FKM – mineral hydraulic oils, phosphate ester hydraulic oils
Installation:
This type of seal must have an axial clearance (please see dimensions h and H). To prevent damage to the sealing lip, avoid using sharp edges during installation.
Hydraulic piston and rod seal USH 22x30x5 NBR90 up to 210 bar KVK/China
Product data
The hydraulic seal USH has a symmetrical design and is suitable for both piston and rod.
Ød=22 mm ; ØD=30 mm ; h=5 mm ; ØD1=29 mm ; HA =5.7 mm ; HB = 7.7 mm ; C =2 mm
Material: NBR90
Application range (the following limit values cannot appear at the same time):
Pressure: ≤ 210 bar; when the pressure is higher than 150 bar, it is recommended to use a back-up ring
Speed: ≤ 0.5 m/s
Temperature: -30°C ~ +100°C
Media: mineral-based hydraulic oils and emulsions; not suitable for environmetally-friendly oils (bio oils)
Manufacturer:
Zhongxingshun Sealing Products Factory
In stock 72 pcs.
Hydraulic piston and rod seal USH 25x33x5 NBR90 up to 210 bar KVK/China
Product data
The hydraulic seal USH has a symmetrical design and is suitable for both piston and rod.
Ød=25 mm ; ØD=33 mm ; h=5 mm ; ØD1=35 mm ; HA =5.7 mm ; HB = 7.7 mm ; C =2 mm
Material: NBR90
Application range (the following limit values cannot appear at the same time):
Pressure: ≤ 210 bar; when the pressure is higher than 150 bar, it is recommended to use a back-up ring
Speed: ≤ 0.5 m/s
Temperature: -30°C ~ +100°C
Media: mineral-based hydraulic oils and emulsions; not suitable for environmetally-friendly oils (bio oils)
Manufacturer:
Zhongxingshun Sealing Products Factory
Hydraulic piston and rod seal UPH 40x60x12 NBR90 up to 210 bar KVK/China
Product data
The hydraulic seal UPH has a symmetrical design and is suitable for both piston and rod.
Ød=25 mm ; ØD=45 mm ; h=12 mm ; ØD1=44 mm ; HA =13 mm ; HB = 15 mm ; C =3.5 mm
Material: NBR90
Application range (the following limit values cannot appear at the same time):
Pressure: ≤ 210 bar; when the pressure is higher than 150 bar, it is recommended to use a back-up ring
Speed: ≤ 0.5 m/s
Temperature: -30°C ~ +100°C
Media: mineral-based hydraulic oils and emulsions; not suitable for environmetally-friendly oils (bio oils)
Manufacturer:
Zhongxingshun Sealing Products Factory
In stock 16 pcs.
Hydraulic piston and rod seal USH 30x38x5 NBR90 up to 210 bar KVK/China
Product data
The hydraulic seal UPH has a symmetrical design and is suitable for both piston and rod.
Ød=30 mm ; ØD=38 mm ; h=5 mm ; ØD1=37 mm ; HA =5.7 mm ; HB = 7.7 mm ; C =2.5 mm
Material: NBR90
Application range (the following limit values cannot appear at the same time):
Pressure: ≤ 210 bar; when the pressure is higher than 150 bar, it is recommended to use a back-up ring
Speed: ≤ 0.5 m/s
Temperature: -30°C ~ +100°C
Media: mineral-based hydraulic oils and emulsions; not suitable for environmetally-friendly oils (bio oils)
Manufacturer:
Zhongxingshun Sealing Products Factory
In stock 32 pcs.
Hydraulic piston and rod seal USH 30x38x6 NBR90 up to 210 bar KVK/China
Product data
The hydraulic seal UPH has a symmetrical design and is suitable for both piston and rod.
Ød=30 mm ; ØD=38 mm ; h=6 mm ; ØD1=37 mm ; HA =7 mm ; HB = 10 mm ; C =2.5 mm
Material: NBR90
Application range (the following limit values cannot appear at the same time):
Pressure: ≤ 210 bar; when the pressure is higher than 150 bar, it is recommended to use a back-up ring
Speed: ≤ 0.5 m/s
Temperature: -30°C ~ +100°C
Media: mineral-based hydraulic oils and emulsions; not suitable for environmetally-friendly oils (bio oils)
Manufacturer:
Zhongxingshun Sealing Products Factory
In stock 8 pcs.
Hydraulic piston and rod seal USH 38x48x6 NBR90 up to 210 bar KVK/China
Product data
The hydraulic seal UPH has a symmetrical design and is suitable for both piston and rod.
Ød=38 mm ; ØD=48 mm ; h=6 mm ; ØD1=47 mm ; HA =7 mm ; HB = 10 mm ; C =2.5 mm
Material: NBR90
Application range (the following limit values cannot appear at the same time):
Pressure: ≤ 210 bar; when the pressure is higher than 150 bar, it is recommended to use a back-up ring
Speed: ≤ 0.5 m/s
Temperature: -30°C ~ +100°C
Media: mineral-based hydraulic oils and emulsions; not suitable for environmetally-friendly oils (bio oils)
Manufacturer:
Zhongxingshun Sealing Products Factory
In stock 15 pcs.

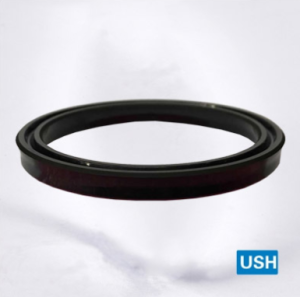

Hydraulic piston and rod seal UPH 38x50x10 NBR90 up to 210 bar KVK/China
Product data
The hydraulic seal UPH has a symmetrical design and is suitable for both piston and rod.
Ød=38 mm ; ØD=50 mm ; h=10 mm ; ØD1=49 mm ; HA =11 mm ; HB = 14 mm ; C =4 mm
Material: NBR90
Application range (the following limit values cannot appear at the same time):
Pressure: ≤ 210 bar; when the pressure is higher than 150 bar, it is recommended to use a back-up ring
Speed: ≤ 0.5 m/s
Temperature: -30°C ~ +100°C
Media: mineral-based hydraulic oils and emulsions; not suitable for environmetally-friendly oils (bio oils)
Manufacturer:
Zhongxingshun Sealing Products Factory
In stock 195 pcs.
Hydraulic piston and rod seal UPH 38x50x6 NBR90 up to 210 bar KVK/China
Product data
The hydraulic seal UPH has a symmetrical design and is suitable for both piston and rod.
Ød=38 mm ; ØD=50 mm ; h=6 mm ; ØD1=49 mm ; HA =8 mm ; HB = 9.5 mm ; C =4 mm
Material: NBR90
Application range (the following limit values cannot appear at the same time):
Pressure: ≤ 210 bar; when the pressure is higher than 150 bar, it is recommended to use a back-up ring
Speed: ≤ 0.5 m/s
Temperature: -30°C ~ +100°C
Media: mineral-based hydraulic oils and emulsions; not suitable for environmetally-friendly oils (bio oils)
Manufacturer:
Zhongxingshun Sealing Products Factory
In stock 290 pcs.

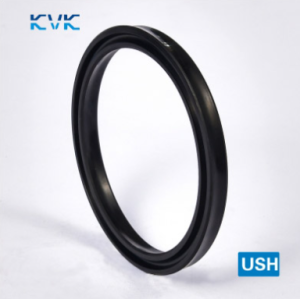

Hydraulic piston and rod seal UPH 40x60x12 NBR90 up to 210 bar KVK/China
Product data
The hydraulic seal USH has a symmetrical design and is suitable for both piston and rod.
Ød=40 mm ; ØD=60 mm ; h=12 mm ; ØD1=59 mm ; HA =13 mm ; HB = 16 mm ; C =4 mm
Material: NBR90
Application range (the following limit values cannot appear at the same time):
Pressure: ≤ 210 bar; when the pressure is higher than 150 bar, it is recommended to use a back-up ring
Speed: ≤ 0.5 m/s
Temperature: -30°C ~ +100°C
Media: mineral-based hydraulic oils and emulsions; not suitable for environmetally-friendly oils (bio oils)
Manufacturer:
Zhongxingshun Sealing Products Factory
In stock 39 pcs.
Hydraulic piston and rod seal UPH 45x53x7 NBR90 up to 210 bar KVK/China
Product data
The hydraulic seal UPH has a symmetrical design and is suitable for both piston and rod.
Ød=45 mm ; ØD=53 mm ; h=7 mm ; ØD1=52 mm ; HA =8 mm ; HB = 11 mm ; C =4 mm
Material: NBR90
Application range (the following limit values cannot appear at the same time):
Pressure: ≤ 210 bar; when the pressure is higher than 150 bar, it is recommended to use a back-up ring
Speed: ≤ 0.5 m/s
Temperature: -30°C ~ +100°C
Media: mineral-based hydraulic oils and emulsions; not suitable for environmetally-friendly oils (bio oils)
Manufacturer:
Zhongxingshun Sealing Products Factory
In stock 20 pcs.
