Piston rod UN seals

Product data

Ød=85 mm; ØD=100 mm; h=9 mm

Material: PU93

Application range (the following limit values cannot appear at the same time):

Pressure: ≤ 320 bar; when the pressure is higher than 200 bar, it is recommended to use a back-up ring
Speed: ≤ 0.8 m/s
Temperature: -30°C ~ +80°C
Media: mineral-based hydraulic oils and emulsions; not suitable for environmetally-friendly oils (bio oils)

Manufacturer:

Zhongxingshun Sealing Products Factory

Product data

Ød=85 mm; ØD=105 mm; h=10 mm

Material: PU93

Application range (the following limit values cannot appear at the same time):

Pressure: ≤ 320 bar; when the pressure is higher than 200 bar, it is recommended to use a back-up ring
Speed: ≤ 0.8 m/s
Temperature: -30°C ~ +80°C
Media: mineral-based hydraulic oils and emulsions; not suitable for environmetally-friendly oils (bio oils)

Manufacturer:

Zhongxingshun Sealing Products Factory

Product data

Ød=80 mm; ØD=100 mm; h=10 mm

Material: PU93

Application range (the following limit values cannot appear at the same time):

Pressure: ≤ 320 bar; when the pressure is higher than 200 bar, it is recommended to use a back-up ring
Speed: ≤ 0.8 m/s
Temperature: -30°C ~ +80°C
Media: mineral-based hydraulic oils and emulsions; not suitable for environmetally-friendly oils (bio oils)

Manufacturer:

Zhongxingshun Sealing Products Factory

Product data

Ød=80 mm; ØD=95 mm; h=9 mm

Material: PU93

Application range (the following limit values cannot appear at the same time):

Pressure: ≤ 320 bar; when the pressure is higher than 200 bar, it is recommended to use a back-up ring
Speed: ≤ 0.8 m/s
Temperature: -30°C ~ +80°C
Media: mineral-based hydraulic oils and emulsions; not suitable for environmetally-friendly oils (bio oils)

Manufacturer:

Zhongxingshun Sealing Products Factory

Product data

Ød=80 mm; ØD=90 mm; h=6 mm

Material: PU93

Application range (the following limit values cannot appear at the same time):

Pressure: ≤ 320 bar; when the pressure is higher than 200 bar, it is recommended to use a back-up ring
Speed: ≤ 0.8 m/s
Temperature: -30°C ~ +80°C
Media: mineral-based hydraulic oils and emulsions; not suitable for environmetally-friendly oils (bio oils)

Manufacturer:

Zhongxingshun Sealing Products Factory

Product data

Ød=80 mm; ØD=88 mm; h=8 mm

Material: PU93

Application range (the following limit values cannot appear at the same time):

Pressure: ≤ 320 bar; when the pressure is higher than 200 bar, it is recommended to use a back-up ring
Speed: ≤ 0.8 m/s
Temperature: -30°C ~ +80°C
Media: mineral-based hydraulic oils and emulsions; not suitable for environmetally-friendly oils (bio oils)

Manufacturer:

Zhongxingshun Sealing Products Factory

Hydraulic piston/rod seal with symmetrical design.

ID: 95.0 mm

OD: 115.0 mm

Width: 12.0 mm

Material: PU92

Adaptable temperature: -20 ~ 100 C

Maximum working pressure: 350 bar (35Mpa)

Manufacturer:  SO GIANT OIL SEAL INDUSTRIAL  CO., LTD

Hydraulic piston/rod seal with symmetrical design.

ID: 150.0 mm

OD: 170.0 mm

Width: 12.0 mm

Material: PU92

Adaptable temperature: -20 ~ 100 C

Maximum working pressure: 350 bar (35Mpa)

Manufacturer:  SO GIANT OIL SEAL INDUSTRIAL  CO., LTD

Hydraulic piston/rod seal with symmetrical design.

ID: 85.0 mm

OD: 100.0 mm

Width: 9.0 mm

Material: PU92

Adaptable temperature: -20 ~ 100 C

Maximum working pressure: 350 bar (35Mpa)

Manufacturer:  SO GIANT OIL SEAL INDUSTRIAL  CO., LTD

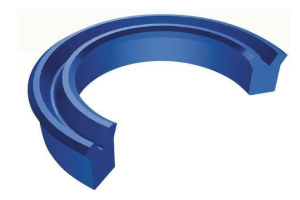

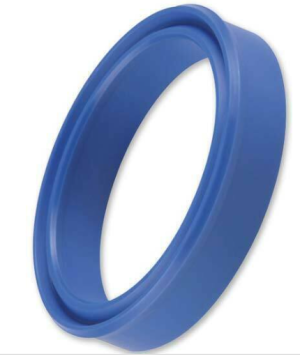

Hydraulic piston/rod seal with symmetrical design.

ID: 80.0 mm

OD: 90.0 mm

Width: 10.0 mm

Material: PU92

Adaptable temperature: -20 ~ 100 C

Maximum working pressure: 350 bar (35Mpa)

Manufacturer:  SO GIANT OIL SEAL INDUSTRIAL  CO., LTD
