Piston rod UN seals

Product data

Ød=40 mm; ØD=60 mm; h=10 mm

Material: PU93

Application range (the following limit values cannot appear at the same time):

Pressure: ≤ 320 bar; when the pressure is higher than 200 bar, it is recommended to use a back-up ring
Speed: ≤ 0.8 m/s
Temperature: -30°C ~ +80°C
Media: mineral-based hydraulic oils and emulsions; not suitable for environmetally-friendly oils (bio oils)

Manufacturer:

Zhongxingshun Sealing Products Factory

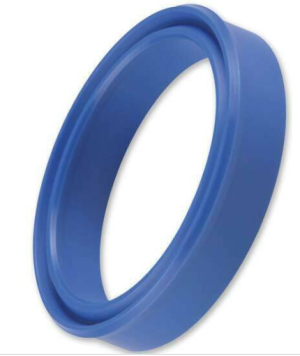

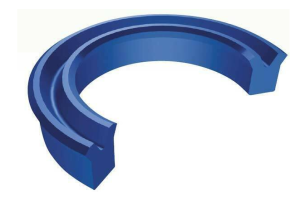

Hydraulic piston/rod seal with symmetrical design.

ID: 40.0 mm

OD: 50.0 mm

Width: 8.0 mm

Material: PU92

Adaptable temperature: -20 ~ 100 C

Maximum working pressure: 350 bar (35Mpa)

Manufacturer:  SO GIANT OIL SEAL INDUSTRIAL  CO., LTD

Hydraulic piston/rod seal with symmetrical design.

ID: 40.0 mm

OD: 50.0 mm

Width: 6.0 mm

Material: PU92

Adaptable temperature: -20 ~ 100 C

Maximum working pressure: 350 bar (35Mpa)

Manufacturer:  SO GIANT OIL SEAL INDUSTRIAL  CO., LTD

Product data

Ød=40 mm; ØD=50 mm; h=5 mm

Material: PU93

Application range (the following limit values cannot appear at the same time):

Pressure: ≤ 320 bar; when the pressure is higher than 200 bar, it is recommended to use a back-up ring
Speed: ≤ 0.8 m/s
Temperature: -30°C ~ +80°C
Media: mineral-based hydraulic oils and emulsions; not suitable for environmetally-friendly oils (bio oils)

Manufacturer:

Zhongxingshun Sealing Products Factory

Product data

Ød=40 mm; ØD=48 mm; h=6 mm

Material: PU93

Application range (the following limit values cannot appear at the same time):

Pressure: ≤ 320 bar; when the pressure is higher than 200 bar, it is recommended to use a back-up ring
Speed: ≤ 0.8 m/s
Temperature: -30°C ~ +80°C
Media: mineral-based hydraulic oils and emulsions; not suitable for environmetally-friendly oils (bio oils)

Manufacturer:

Zhongxingshun Sealing Products Factory

Hydraulic piston/rod seal with symmetrical design.

ID: 35.0 mm

OD: 45.0 mm

Width: 7.0 mm

Material: PU92

Adaptable temperature: -20 ~ 100 C

Maximum working pressure: 350 bar (35Mpa)

Manufacturer:  SO GIANT OIL SEAL INDUSTRIAL  CO., LTD

Product data

Ød=35 mm; ØD=43 mm; h=6 mm

Material: PU93

Application range (the following limit values cannot appear at the same time):

Pressure: ≤ 320 bar; when the pressure is higher than 200 bar, it is recommended to use a back-up ring
Speed: ≤ 0.8 m/s
Temperature: -30°C ~ +80°C
Media: mineral-based hydraulic oils and emulsions; not suitable for environmetally-friendly oils (bio oils)

Manufacturer:

Zhongxingshun Sealing Products Factory

Hydraulic piston/rod seal with symmetrical design.

ID: 16.0 mm

OD: 22.0 mm

Width: 7.0 mm

Material: PU92

Adaptable temperature: -20 ~ 100 C

Maximum working pressure: 350 bar (35Mpa)

Manufacturer:  SO GIANT OIL SEAL INDUSTRIAL  CO., LTD

Product data

Ød=25 mm; ØD=35 mm; h=7 mm

Material: PU93

Application range (the following limit values cannot appear at the same time):

Pressure: ≤ 320 bar; when the pressure is higher than 200 bar, it is recommended to use a back-up ring
Speed: ≤ 0.8 m/s
Temperature: -30°C ~ +80°C
Media: mineral-based hydraulic oils and emulsions; not suitable for environmetally-friendly oils (bio oils)

Manufacturer:

Zhongxingshun Sealing Products Factory

Product data

Ød=24 mm; ØD=34 mm; h=6 mm

Material: PU93

Application range (the following limit values cannot appear at the same time):

Pressure: ≤ 320 bar; when the pressure is higher than 200 bar, it is recommended to use a back-up ring
Speed: ≤ 0.8 m/s
Temperature: -30°C ~ +80°C
Media: mineral-based hydraulic oils and emulsions; not suitable for environmetally-friendly oils (bio oils)

Manufacturer:

Zhongxingshun Sealing Products Factory
