KDAS Hydraulic Piston Seals
KDAS compact piston seal is a five-element double-acting piston seal set consisting of one specially shaped NBR rubber sealing ring, two split support rings made of thermoplastic material and two POM guide rings. KDAS is a compression type seal with excellent sealing properties, suitable for operation under pressure on both sides of the seal, as well as for rapid sealing action. The active piston is not pressed into the radial sealing gap during the sealing process and thus prevents the sealing element from twisting.
Material: NBR+POM+TPE
Application range (the following limit values must not be present at the same time):
Pressure: ≤ 250 bar
Speed: ≤ 0.5 m/s
Temperature: -30°C ~ +100°C
Operating medium: mineral-based hydraulic oils
Hydraulic piston seal KDAS 220x190x35.4 NBR+POM+TPE до 250 bar KVK/China
Product data

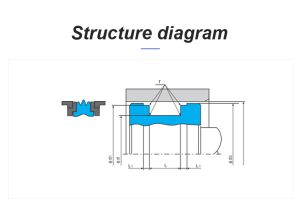

D=220 mm ; Ød=190 mm ; L=35.4 mm ; Ød1=212.7 mm ; Ød2=217.9 mm ; L1=6.35 mm ; r=0.8 mm
Material: NBR+POM+TPE
Application range (the following limit values cannot appear at the same time):
Pressure: ≤ 250 bar
Speed: ≤ 0.5 m/s
Temperature: -30°C ~ +100°C
Media: mineral-based hydraulic oils
Manufacturer:
Zhongxingshun Sealing Products Factory
In stock 5 pcs.
Hydraulic piston seal KDAS 185x160x25.4/12.7 NBR+POM+TPE до 250 bar KVK/China
Product data
D=185 mm ; Ød=160 mm ; L=25.4 mm ; Ød1=176.7 mm ; Ød2=182.1mm ; L1=12.7 mm ; r=0.8 mm
Material: NBR+POM+TPE
Application range (the following limit values cannot appear at the same time):
Pressure: ≤ 250 bar
Speed: ≤ 0.5 m/s
Temperature: -30°C ~ +100°C
Media: mineral-based hydraulic oils
Manufacturer:
Zhongxingshun Sealing Products Factory
In stock 5 pcs.
Hydraulic piston seal KDAS 180x155x25.4/12.7 NBR+POM+TPE до 250 bar KVK/China
Product data
D=180 mm ; Ød=155 mm ; L=25.4 mm ; Ød1=171.7 mm ; Ød2=177.1mm ; L1=12.7 mm ; r=0.8 mm
Material: NBR+POM+TPE
Application range (the following limit values cannot appear at the same time):
Pressure: ≤ 250 bar
Speed: ≤ 0.5 m/s
Temperature: -30°C ~ +100°C
Media: mineral-based hydraulic oils
Manufacturer:
Zhongxingshun Sealing Products Factory
In stock 8 pcs.
Hydraulic piston seal KDAS 180x150x35.4 NBR+POM+TPE до 250 bar KVK/China
Product data
D=180 mm ; Ød=150 mm ; L=35.4 mm ; Ød1=172.95 mm ; Ød2=177.87mm ; L1=6.35 mm ; r=0.8 mm
Material: NBR+POM+TPE
Application range (the following limit values cannot appear at the same time):
Pressure: ≤ 250 bar
Speed: ≤ 0.5 m/s
Temperature: -30°C ~ +100°C
Media: mineral-based hydraulic oils
Manufacturer:
Zhongxingshun Sealing Products Factory
In stock 5 pcs.
Hydraulic piston seal KDAS 110x96x22.5/5.2 NBR+POM+TPE до 250 bar KVK/China
Product data
D=110 mm ; Ød=96 mm ; L=22.5 mm ; Ød1=106 mm ; Ød2=109.4 mm ; L1=5.2 mm ; r=0.4 mm
Material: NBR+POM+TPE
Application range (the following limit values cannot appear at the same time):
Pressure: ≤ 250 bar
Speed: ≤ 0.5 m/s
Temperature: -30°C ~ +100°C
Media: mineral-based hydraulic oils
Manufacturer:
Zhongxingshun Sealing Products Factory
In stock 10 pcs.
Hydraulic piston seal KDAS 90x72x22.5/3.6 NBR+POM+TPE до 250 bar KVK/China
Product data
ØD=90 mm ; Ød=72 mm ; L=22.5 mm ; Ød1=86 mm ; Ød2=89 mm ; L1=3.6 mm ; r=0.4 mm
Material: NBR+POM+TPE
Application range (the following limit values cannot appear at the same time):
Pressure: ≤ 250 bar
Speed: ≤ 0.5 m/s
Temperature: -30°C ~ +100°C
Media: mineral-based hydraulic oils
Manufacturer:
Zhongxingshun Sealing Products Factory
In stock 100 pcs.
Hydraulic piston seal KDAS 70x54x20.5 NBR+POM+TPE до 250 bar KVK/China
Product data
D=70 mm ; Ød=54 mm ; L=20.5 mm ; Ød1=66 mm ; Ød2=69 mm ; L1=3.1 mm ; r=0.4 mm
Material: NBR+POM+TPE
Application range (the following limit values cannot appear at the same time):
Pressure: ≤ 250 bar
Speed: ≤ 0.5 m/s
Temperature: -30°C ~ +100°C
Media: mineral-based hydraulic oils
Manufacturer:
Zhongxingshun Sealing Products Factory
In stock 32 pcs.
Hydraulic piston seal KDAS 70x50x22.4 NBR+POM+TPE KVK up to 250 bar
D=70 mm ; Ød=50 mm ; L=22.4 mm ; Ød1=64.2 mm ; Ød2=68.3 mm ; L1=6.35 mm ; r=0.4 mm
Material: NBR+POM+TPE
Application range (the following limit values cannot appear at the same time):
Pressure: ≤ 250 bar
Speed: ≤ 0.5 m/s
Temperature: -30°C ~ +100°C
Media: mineral-based hydraulic oils
Manufacturer:
Zhongxingshun Sealing Products Factory
In stock 60 pcs.
Hydraulic piston seal KDAS 42x28x15.5 NBR+POM+TPE KVK up to 250 bar
D=42 mm ; Ød=28 mm ; L=15.5 mm ; Ød1=38 mm ; Ød2=41 mm ; L1=2.6 mm ; r=0.4 mm
Material: NBR+POM+TPE
Application range (the following limit values cannot appear at the same time):
Pressure: ≤ 250 bar
Speed: ≤ 0.5 m/s
Temperature: -30°C ~ +100°C
Media: mineral-based hydraulic oils
Manufacturer:
Zhongxingshun Sealing Products Factory
In stock 3 pcs.
Hydraulic piston seal KDAS 45x31x15.5 NBR+POM+TPE KVK up to 250 bar
D=45 mm ; Ød=31 mm ; L=15.5 mm ; Ød1=41 mm ; Ød2=44 mm ; L1=2.6 mm ; r=0.4 mm
Material: NBR+POM+TPE
Application range (the following limit values cannot appear at the same time):
Pressure: ≤ 250 bar
Speed: ≤ 0.5 m/s
Temperature: -30°C ~ +100°C
Media: mineral-based hydraulic oils
Manufacturer:
Zhongxingshun Sealing Products Factory
In stock 5 pcs.
