Hydraulic piston seal type TT0

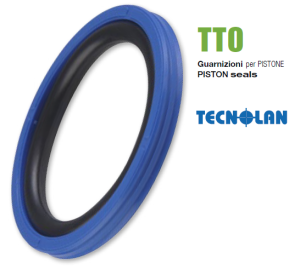

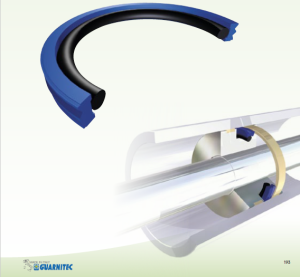

The TTO double acting piston seal is designed for use in hydraulic and pneumatic cylinders with light loads and is designed exclusively for piston applications. It consists of a specially molded polyurethane ring with a hardness of 92 Shore and a rubber O-ring made of NBR 70 Shore for pressure reinforcement. It offers very good static and dynamic sealing performance, a simple design with a low profile and easy installation, it is suitable even for low operating speeds. If necessary, it can be used in pneumatic cylinders as a piston seal.
Application range:
Pressure: ≤250 bar
Operating temperature: -35°C to +100°C
Surface velocity: 0.5 m/s
Media: mineral-based hydraulic oils, emulsions
Material: PU92+NBR70
Hydraulic piston seal TTO 130x114.5х6.3 PU92+NBR70 up to 250 bar GUARNITEC/Italy
Product data
D=130 mm ; d=114.5 mm ;H=6.3 mm OR 349
Материал: PU92+NBR70
Application range (the following limit values cannot appear at the same time):
Pressure: ≤ 250 bar
Speed: ≤ 0.5 m/s
Temperature: -35°C до +100°C
Media: mineral-based hydraulic oils
Manufacturer:
GUARNITEC S.r.l.
100% Made in Italy
For delivery options to your country, please do not hesitate to contact us!
Product photos are for illustrative purposes and may differ from the actual appearance of the item. This does not affect the characteristics of the product.
In stock 20 pcs.
