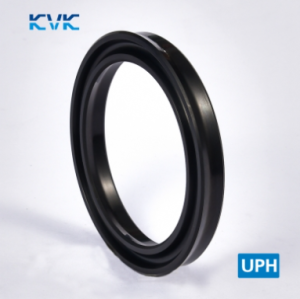

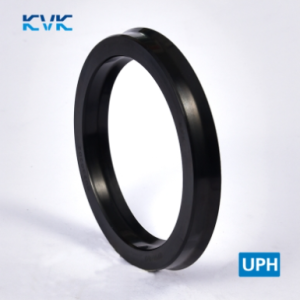

Universal piston and rod hydraulic seal UPH
UPH is a symmetrical hydraulic seal that can be used for both piston and rod in the hydraulic cylinder. This type of seal has a larger cross section and can be used for a wide range of operations. It can be made of nitrile rubber or fluororubber, which provides a wider range of operating temperatures and, accordingly, a wider range of application.
Operating pressure: ≤320 bar. To prevent extrusion, when the pressure is higher than 150 bar, it is recommended to use a back-up ring at the base of the seal to ensure a larger gap during normal operation.
Operating temperature:
Standard type (NBR material): -30°C ~ +100°C
Temperature resistant type (FKM material): -10°C ~ +150°C
Reciprocating speed: ≤0.5 m/s
Media:
NBR - mineral hydraulic oils, water-glycol hydraulic oils, emulsions
FKM – mineral hydraulic oils, phosphate ester hydraulic oils
Installation:

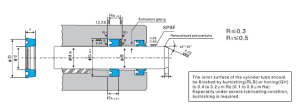

This type of seal must have an axial clearance (please see dimensions h and H). To prevent damage to the sealing lip, avoid using sharp edges during installation.
Hydraulic piston and rod seal UPH-48A 48x60x6 NBR90 up to 320 bar KVK/China
Product data
The hydraulic seal UPH has a symmetrical design and is suitable for both piston and rod.
| Модел | Ød | ØD | h | ØD1 | HA | HB | r |
| UPH-48A | 48 | 60 | 6 | 59 | 7 | 9 | 4 |
Material: NBR90
Application range (the following limit values cannot appear at the same time):
Pressure: ≤ 320 bar; when the pressure is higher than 150 bar, it is recommended to use a back-up ring
Speed: ≤ 0.5 m/s
Temperature: -30°C ~ +100°C
Media: mineral-based hydraulic oils and emulsions; not suitable for environmetally-friendly oils (bio oils)
Manufacturer:
Zhongxingshun Sealing Products Factory
In stock 10 pcs.
Hydraulic piston and rod seal UPH-25B 25x40x10 NBR90 up to 320 bar KVK/China
Product data
The hydraulic seal UPH has a symmetrical design and is suitable for both piston and rod.
| Модел | Ød | ØD | h | ØD1 | HA | HB | r |
| UPH-25B | 25 | 40 | 10 | 39 | 11 | 13 | 3.5 |
Material: NBR90
Application range (the following limit values cannot appear at the same time):
Pressure: ≤ 320 bar; when the pressure is higher than 150 bar, it is recommended to use a back-up ring
Speed: ≤ 0.5 m/s
Temperature: -30°C ~ +100°C
Media: mineral-based hydraulic oils and emulsions; not suitable for environmetally-friendly oils (bio oils)
Manufacturer:
Zhongxingshun Sealing Products Factory
In stock 10 pcs.
Hydraulic piston and rod seal UPH-16 16x26x8 NBR90 up to 320 bar KVK/China
Product data
The hydraulic seal UPH has a symmetrical design and is suitable for both piston and rod.
| Модел | Ød | ØD | h | ØD1 | HA | HB | r |
| UPH-16 | 16 | 26 | 8 | 25 | 9 | 11 | 2.5 |
Material: NBR90
Application range (the following limit values cannot appear at the same time):
Pressure: ≤ 320 bar; when the pressure is higher than 150 bar, it is recommended to use a back-up ring
Speed: ≤ 0.5 m/s
Temperature: -30°C ~ +100°C
Media: mineral-based hydraulic oils and emulsions; not suitable for environmetally-friendly oils (bio oils)
Manufacturer:
Zhongxingshun Sealing Products Factory
In stock 10 pcs.
