PP type pneumatic damper
PP type buffer seal is specially designed for cylinders. It acts as a one-way valve in the whole sealing system and can automatically select a good buffer stroke, and has excellent buffer effect because it can be automatically centered.
Applications:
Working pressure: ≤1.6MPa
Working temperature: -20℃～+80℃
Reciprocating speed: ≤1m/s
Media: Oil-lubricated air, dry air and oil-free air (requires initial lubrication during installation).
Installation: These pneumatic seals can be easily installed in the groove. To avoid damage to the seal, be careful to avoid sharp edges during installation. Initial lubrication ensures a long service life of the seal.

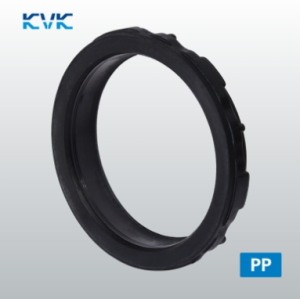

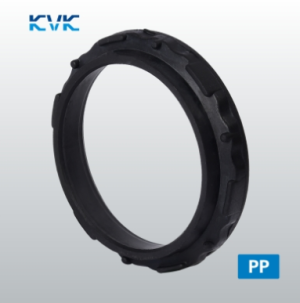

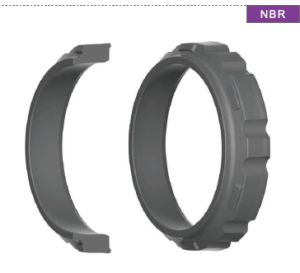

Pneumatic damper PP 30x40x6.2/7.8 PU90 up to 16 bar KVK/China
Product data
Ød=30 mm ; ØD=40 mm ; h=6.2 mm ; H=7.8 mm ; Da=39.1 mm ; ØD1=31.5 mm ; ØD2=35 mm ; L=7 mm
Material: NBR 80
Application range (the following limit values cannot appear at the same time):
Pressure: ≤ 16 bar
Speed: ≤ 0.1 m/s
Temperature: -20°C ~ +80°C
Media: Air, oil-lubricated and dry air, oil-free air (initial lubrication during assembly)
Manufacturer:
Zhongxingshun Sealing Products Factory
In stock 20 pcs.
