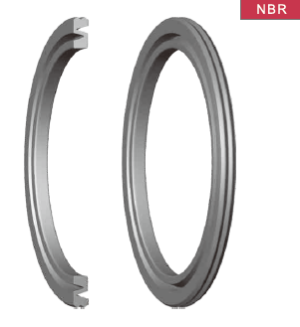

Pneumatic piston seal type PPZ
PPZ is a double-acting pneumatic piston seal specifically designed for use in piston applications in short-stroke pneumatic cylinders as well as in valves.
It is manufactured from high-quality NBR rubber with a Shore 80 hardness as standard.
PPZ offers excellent sealing performance even in limited installation space, very good wear resistance, long service life, is easy to install, has very low dynamic and static friction, runs smoothly due to the geometry of its sealing edge and is suitable for operation in both lubricated and dry air /please note that in this case the seal must be lubricated before installation/.
PPZ can also be used in single-acting cylinders as well as in fully automated installations.
Pneumatic piston seal PPZ 16x9x2.1 NBR80 12bar (for short stroke cylinders) KVK/China
Product data
ØD=16 mm ; Ød=9 mm ; h=2.1 mm ; H=2.5 mm
Material: NBR 80
Application range (the following limit values cannot appear at the same time):
Pressure: ≤ 12 bar
Speed: ≤ 1 m/s
Temperature: -25°C ~ +100°C
Media: mineral hydraulic oils, water-glycol hydraulic oils, emulsions
Manufacturer:
Zhongxingshun Sealing Products Factory
In stock 20 pcs.
