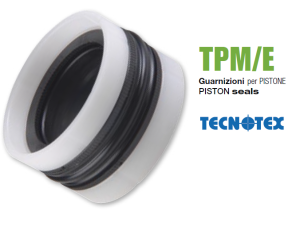

TPM/E Hydraulic Piston Seals

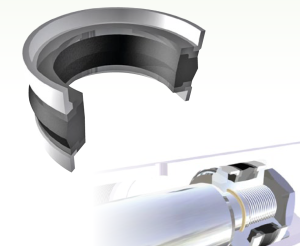

TPM/E is a five-piece piston seal for hydraulic cylinders. The middle part is a nitrile rubber energizer with one lip profile, followed by two polyester support rings and two polyacetal guide rings. This unique combination creates very low friction in high-pressure working environments.
TPM/E is easy to install, has high wear resistance, high extrusion resistance, and low deformation rate. It is most common in ISO dimensions.
Application range:
Pressure: ≤350 bar
Operating temperature: -35°C to +110°C
Surface velocity: 0.5 m/s
Media: mineral-based hydraulic oils, emulsions
Hydraulic piston seal TPM/E 80x60x25 NBR+TPE+POM up to 350 bar GUARNITEC/Italy
Product data

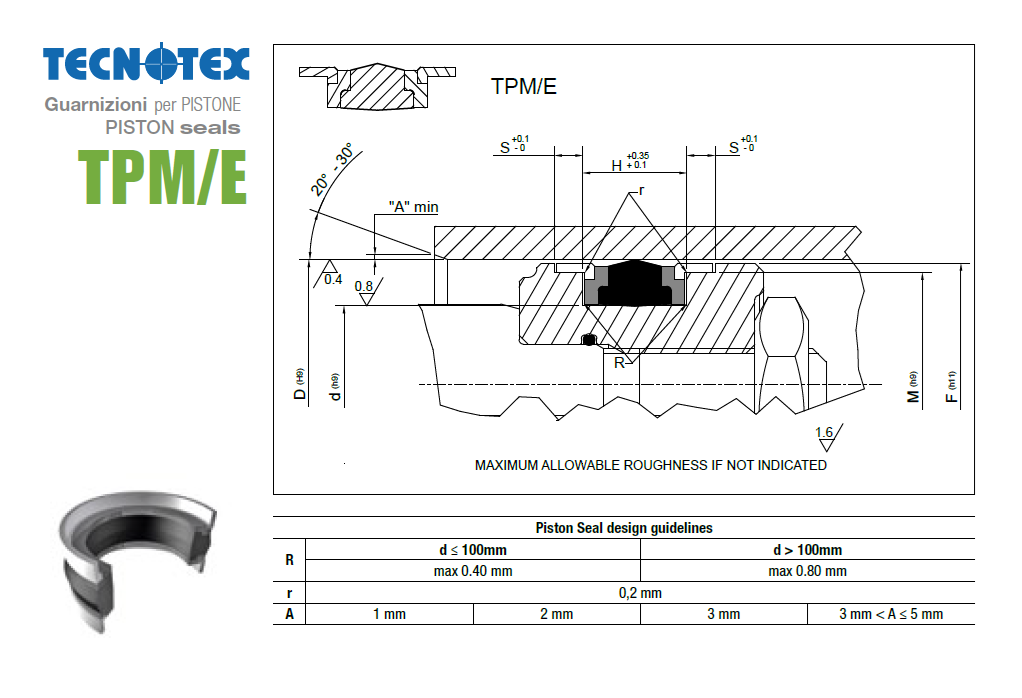

D=80 mm; d=60 mm; H=25 mm; S= 6.35 mm; M=75 mm; F=78 mm
Материал: NBR+TPE+POM
Application range (the following limit values cannot appear at the same time):
Pressure: ≤ 350 bar
Speed: ≤ 0.5 m/s
Temperature: -35°C до +110°C
Media: mineral-based hydraulic oils
Manufacturer:
GUARNITEC S.r.l.
100% Made in Italy
For delivery options to your country, please do not hesitate to contact us!
Product photos are for illustrative purposes and may differ from the actual appearance of the item. This does not affect the characteristics of the product.
In stock 80 pcs.
