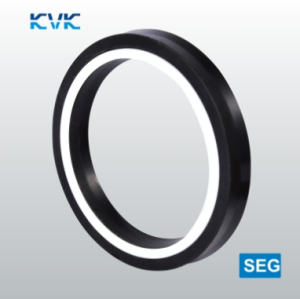

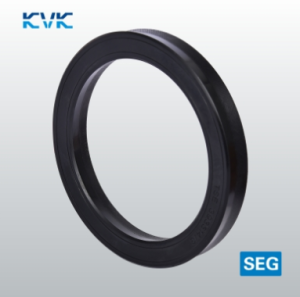

Hydraulic piston and rod seal type SEG
Product Details

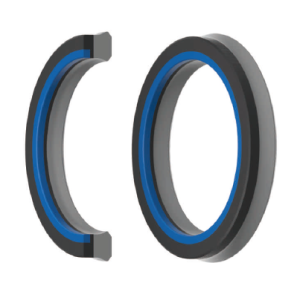

Piston Rod Seal with Inner Diameter Support Ring
Easy to Install, High Wear Resistance, High Extrusion Resistance, Low Deformation
Material: NBR+fabic NBR+POM
Media: General Petroleum-Based Hydraulic Oil
Working Temperature ℃: -30 to +120
Speed: ≤0.5m/s
Working Pressure: 500bar
Hydraulic Piston and Rod Seal SEG 80x90x13 NBR+fabric NBR+POM 500 bar KVK/China
Product data
Ød=80 mm ; ØD=90 mm ; L=13 mm ;M=88.5 mm
Material: NBR+fabic NBR+POM
Application range (the following limit values cannot appear at the same time):
Pressure: ≤ 500 bar
Speed: ≤ 0.5 m/s
Temperature: -30°C ~ +12°C
Media: mineral hydraulic oils, water-glycol hydraulic oils, emulsions
Manufacturer:
Zhongxingshun Sealing Products Factory
In stock 10 pcs.
Hydraulic Piston and Rod Seal SEG 80x100x14.5 NBR+fabric NBR+POM 500 bar KVK/China
Product data
Ød=80 mm ; ØD=100 mm ; L=14.5 mm ;M=98.5 mm
Material: NBR+fabic NBR+POM
Application range (the following limit values cannot appear at the same time):
Pressure: ≤ 500 bar
Speed: ≤ 0.5 m/s
Temperature: -30°C ~ +12°C
Media: mineral hydraulic oils, water-glycol hydraulic oils, emulsions
Manufacturer:
Zhongxingshun Sealing Products Factory
In stock 10 pcs.
