Guide strip type FC
The guide strip has good wear resistance. The guide strip can be cut into rolls of arbitrary length. It is suitable for repair and maintenance, especially for large sizes (>100 mm). It is easy to install, maintenance-free and corrosion-resistant, reducing the risk of damage to metal parts. It has good sliding ability and excellent emergency operation conditions in case of insufficient sliding.
Material: phenolic resin
Medium: All lubricating media
Operating temperature ℃: -40 to +120
Specific gravity: 1.1g/cm3
Thermal expansion coefficient: 8.3x10-5(k-1)
Speed: ≤1m/s
Friction coefficient: 0.15-0.2
Compressive strength: 3.9N/mm2

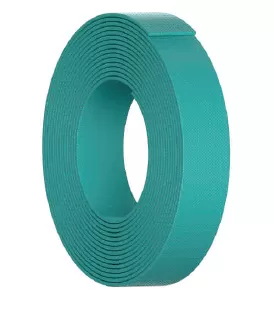

Guide strip FC 30x2.5 PTFE + bronze KVK/China
Product data
The guide strip has good wear resistance. The guide strip can be cut into rolls of arbitrary length. It is suitable for repair and maintenance, especially for large sizes (>100 mm). It is easy to install, maintenance-free and corrosion-resistant, reducing the risk of damage to metal parts. It has good sliding ability and excellent emergency operation conditions in case of insufficient sliding.
L= 30 mm ; s = 2.5 mm
Ød=51 mm ; ØD=56 mm ; h=15 mm
Material: phenolic resin
Medium: All lubricating media
Operating temperature ℃: -40 to +120
Specific gravity: 1.1g/cm3
Thermal expansion coefficient: 8.3x10-5(k-1)
Speed: ≤1m/s
Friction coefficient: 0.15-0.2
Compressive strength: 3.9N/mm2
Manufacturer:
Zhongxingshun Sealing Products Factory
In stock 21 pcs.
