Heavy duty piston seal A103 63x48x11 NBR/PTFE+Bronze/POM heavy duty ALP
Price: €8.89
Out of stock
- Code:32063048110
- Weight:0.023 Kgs

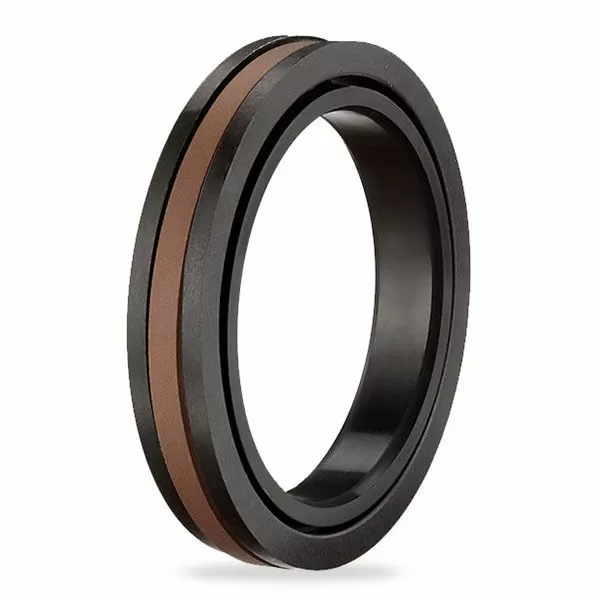

A103 heavy duty piston seal is designed for double-acting hydraulic cylinders and heavy duty operations. It consists of two thermoplastic supplort rings, one NBR ring and bronze-filled PTFE sealing ring.
Manufacturer:
ALP KAUCUK SANAYI VE TICARET A.S.
Estimated Shipping
to Targovishte starts at €5.18outside Targovishte starts at €5.28
to Targovishte starts at €2.73outside Targovishte starts at €2.73
Seal dimensions: D=63 mm d=48 mm b=11 mm
|
TECHNICAL DATA |
|||
|
Working pressure |
400 bar |
||
|
Working temperature |
-30 +105 °C |
||
|
Sliding speed |
0.5 m/s |
||
|
Material |
NBR 80/PTFE + BRONZE/POM |
||
|
Media |
Mineral-base hydraulic oils |
||
|

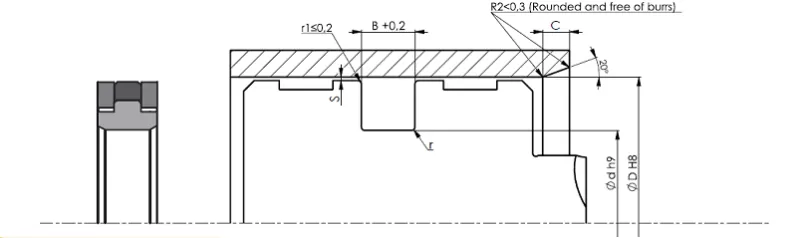

Surface Roughness |
|||
|
|
Ra |
Rmax |
|
|
Dynamic surface |
≤ 0.2 μm |
≤ 2.0 μm |
|
|
Groove base |
≤ 1.6 μm |
≤ 6.3 μm |
|
|
Groove flanks |
≤ 3.2 μm |
≤ 15 μm |
|
