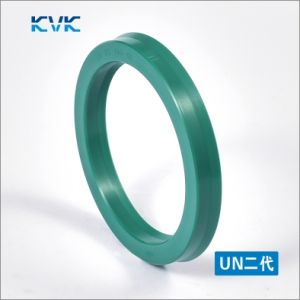

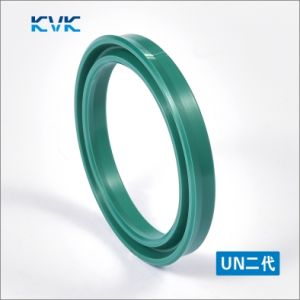

Piston rod UN seals
Hydraulic piston and rod seal UN 14x24x8 up to 320 bar KVK/China
Product data
Ød=14 mm ; ØD=24 mm ; h=8 mm ; HA=9 mm ; C=2.5 mm
Material: PU93
Application range (the following limit values cannot appear at the same time):
Pressure: ≤ 320 bar; when the pressure is higher than 200 bar, it is recommended to use a back-up ring
Speed: ≤ 0.8 m/s
Temperature: -30°C ~ +80°C
Media: mineral-based hydraulic oils and emulsions; not suitable for environmetally-friendly oils (bio oils)
Manufacturer:
Zhongxingshun Sealing Products Factory
In stock 40 pcs.
Hydraulic piston and rod seal UN 4x11x5 KVK up to 320 bar KVK/China
Product data
Ød=4 mm ; ØD=11 mm ; h=5 mm ; HA=5.7 mm ; C=2.0 mm
Material: PU93
Application range (the following limit values cannot appear at the same time):
Pressure: ≤ 320 bar; when the pressure is higher than 200 bar, it is recommended to use a back-up ring
Speed: ≤ 0.8 m/s
Temperature: -30°C ~ +80°C
Media: mineral-based hydraulic oils and emulsions; not suitable for environmetally-friendly oils (bio oils)
Manufacturer:
Zhongxingshun Sealing Products Factory
In stock 100 pcs.
Hydraulic piston/ rod seal UN 10x15x4 NBR 92 SOG/TW
Hydraulic piston/rod seal with symmetrical design.
ID: 10.0 mm
OD: 15.0 mm
Width: 4.0 mm
Material: NBR 92
Adaptable temperature: -20 ~ 100 C
Maximum working pressure: 350 bar (35Mpa)
Manufacturer: SO GIANT OIL SEAL INDUSTRIAL CO., LTD
For delivery options to your country, please do not hesitate to contact us!
In stock 40 pcs.
Hydraulic piston and rod seal UN 105x120x12 PU93 KVK up to 320 bar KVK/China
Product data
Ød=105 mm ; ØD=120 mm ; h=12 mm
Material: PU93
Application range (the following limit values cannot appear at the same time):
Pressure: ≤ 320 bar; when the pressure is higher than 200 bar, it is recommended to use a back-up ring
Speed: ≤ 0.8 m/s
Temperature: -30°C ~ +80°C
Media: mineral-based hydraulic oils and emulsions; not suitable for environmetally-friendly oils (bio oils)
Manufacturer:
Zhongxingshun Sealing Products Factory
In stock 4 pcs.
Hydraulic piston and rod seal UN 30x40x7 PU93 KVK up to 320 bar KVK/China
Product data
Ød=30 mm ; ØD=40 mm ; h=7 mm
Material: PU93
Application range (the following limit values cannot appear at the same time):
Pressure: ≤ 320 bar; when the pressure is higher than 200 bar, it is recommended to use a back-up ring
Speed: ≤ 0.8 m/s
Temperature: -30°C ~ +80°C
Media: mineral-based hydraulic oils and emulsions; not suitable for environmetally-friendly oils (bio oils)
Manufacturer:
Zhongxingshun Sealing Products Factory
In stock 90 pcs.
Hydraulic rod seal VES 75x90x24 NBR fabric, 5 elements, 400 bar KVK/China
Product data
Ød=75 mm ; ØD=90 mm ; L=24 mm ; C=5.0 mm
Material: NBR fabric 5pcs.
Application range (the following limit values cannot appear at the same time):
Pressure: ≤ 400 bar
Speed: ≤ 0.5 m/s
Temperature: -30°C ~ +100°C
Media: mineral-based hydraulic oils and emulsions; not suitable for environmetally-friendly oils (bio oils)
Manufacturer:
Zhongxingshun Sealing Products Factory
In stock 5 pcs.
Hydraulic piston and rod seal UN 210x230x15 до 320 bar KVK/China
Product data
Ød=210 mm ; ØD=230 mm ; h=15 mm
Material: PU93
Application range (the following limit values cannot appear at the same time):
Pressure: ≤ 320 bar; when the pressure is higher than 200 bar, it is recommended to use a back-up ring
Speed: ≤ 0.8 m/s
Temperature: -30°C ~ +80°C
Media: mineral-based hydraulic oils and emulsions; not suitable for environmetally-friendly oils (bio oils)
Manufacturer:
Zhongxingshun Sealing Products Factory
In stock 10 pcs.
Hydraulic piston and rod seal 105x120x8 PU93 KVK до 320 bar KVK/China
Product data
Ød=105 mm ; ØD=120 mm ; h=8 mm
Material: PU93
Application range (the following limit values cannot appear at the same time):
Pressure: ≤ 320 bar; when the pressure is higher than 200 bar, it is recommended to use a back-up ring
Speed: ≤ 0.8 m/s
Temperature: -30°C ~ +80°C
Media: mineral-based hydraulic oils and emulsions; not suitable for environmetally-friendly oils (bio oils)
Manufacturer:
Zhongxingshun Sealing Products Factory
In stock 10 pcs.
Hydraulic piston and rod seal UN 80x100x15 PU93 KVK до 320 bar KVK/China
Product data
Ød=80 mm ; ØD=100 mm ; h=15 mm
Material: PU93
Application range (the following limit values cannot appear at the same time):
Pressure: ≤ 320 bar; when the pressure is higher than 200 bar, it is recommended to use a back-up ring
Speed: ≤ 0.8 m/s
Temperature: -30°C ~ +80°C
Media: mineral-based hydraulic oils and emulsions; not suitable for environmetally-friendly oils (bio oils)
Manufacturer:
Zhongxingshun Sealing Products Factory
In stock 21 pcs.
Hydraulic piston and rod seal UN 63x80x10 PU93 KVK до 320 bar KVK/China
Product data
Ød=63 mm ; ØD=80 mm ; h=10 mm
Material: PU93
Application range (the following limit values cannot appear at the same time):
Pressure: ≤ 320 bar; when the pressure is higher than 200 bar, it is recommended to use a back-up ring
Speed: ≤ 0.8 m/s
Temperature: -30°C ~ +80°C
Media: mineral-based hydraulic oils and emulsions; not suitable for environmetally-friendly oils (bio oils)
Manufacturer:
Zhongxingshun Sealing Products Factory
In stock 20 pcs.
