Repair kits for hydraulic pumps and cylinders
Boom Cylinder Seal Kit 201-63-02010 for KOMATSU excavators
Repair kit for the boom cylinder of KOMATSU excavators.
Piston diameter (d): 65.00 mm
Cylinder diameter (D): 100.00 mm
Related products:
| POS. | Number | Name | Qty. |
| 201-63-02010 | BOOM CYLINDER ASSEMBLY | 1 | |
| 1 | 201-63-56341 | • CYLINDER | 1 |
| 2 | 707-76-65040 | • BUSHING | 2 |
| 3 | 07145-00065 | • SEAL,DUST | 4 |
| 4 | 707-28-10170 | • HEAD,CYLINDER | 1 |
| 5 | 07177-06530 | • BUSHING | 1 |
| 6 | 707-51-65211 | • PACKING,ROD | 1 |
| 7 | 144-63-92170 | • SEAL,DUST | 1 |
| 8 | 07179-00088 | • RING,SNAP | 1 |
| 9 | 07000-12095 | • O-RING | 2 |
| 10 | 07146-02096 | • RING,BACK-UP | 1 |
| 11 | 707-35-91010 | • RING,BACK-UP | 1 |
| 12 | 01010-81450 | • BOLT | 12 |
| 13 | 201-63-56320 | • ROD,PISTON | 1 |
| 14 | 707-71-50540 | • PLUNGER | 1 |
| 15 | 707-36-10261 | • PISTON | 1 |
| 16 | 707-44-10080 | • RING,PISTON | 1 |
| 17 | 07155-01025 | • RING,WEAR | 1 |
| 18 | 07165-14547 | • NUT | 1 |
| 19 | 07020-00675 | FITTING,GREASE | 2 |
| 20 | 201-63-56381 | TUBE | 1 |
| 21 | 201-63-56371 | TUBE | 1 |
| 22 | 07000-13025 | O-RING | 2 |
| 23 | 01010-50850 | BOLT | 8 |
| 24 | 01602-20825 | WASHER,SPRING | 8 |
| 25 | 707-88-99691 | BRACKET | 1 |
| 26 | 707-88-97720 | BAND | 1 |
| 27 | 01010-51035 | BOLT | 2 |
| 28 | 01602-21030 | WASHER,SPRING | 2 |
| 29 | 01010-51020 | BOLT | 2 |
| 30 | 01643-31032 | WASHER | 2 |
Suitable for KOMATSU:
PC60, PC60L, PW60, PW60S
Manufacturer:
For delivery options to your country, please do not hesitate to contact us!
Product photos are for illustrative purposes and may differ from the actual appearance of the item. This does not affect the characteristics of the product.
The names Komatsu, Hitachi or any other original equipment manufacturers are registered trademarks of the respective original equipment manufacturers. All names, descriptions, numbers and symbols are used for reference purposes only.
Satellite Nikis Ltd. is in no way associated with any of the manufacturers we have listed. All manufacturer's names and descriptions are for reference only.
In stock 1 pcs.

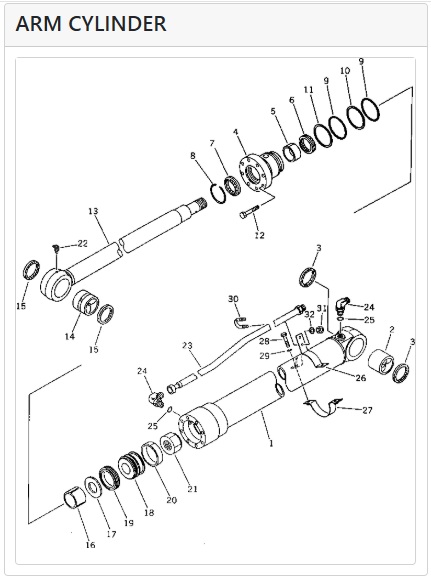

Arm Cylinder Seal Kit 201-63-02020 for KOMATSU excavators
Repair kit for the arm cylinder of KOMATSU excavators.
Piston diameter (d): 60.00 mm
Cylinder diameter (D): 90.00 mm
Related products:
| POS. | Number | Name | Qty. |
| 201-63-02020 | CYLINDER ASSEMBLY | 1 | |
| 1 | 201-63-66342 | • CYLINDER | 1 |
| 2 | 707-76-60180 | • BUSHING | 1 |
| 3 | 07145-00060 | • SEAL,DUST | 2 |
| 4 | 707-28-90270 | • HEAD,CYLINDER | 1 |
| 5 | 07177-06030 | • BUSHING | 1 |
| 6 | 707-51-60211 | • PACKING,ROD | 1 |
| 7 | 141-63-93270 | • SEAL,DUST | 1 |
| 8 | 07179-00082 | • RING,SNAP | 1 |
| 9 | 07000-12090 | • O-RING | 2 |
| 10 | 07001-02090 | • RING,BACK-UP | 1 |
| 11 | 707-35-90950 | • RING,BACK-UP | 1 |
| 12 | 01010-81450 | • BOLT | 8 |
| 13 | 201-63-66321 | • ROD,PISTON | 1 |
| 14 | 707-76-60080 | • BUSHING | 1 |
| 15 | 07145-00060 | • SEAL,DUST | 2 |
| 16 | 707-71-50670 | • PLUNGER | 1 |
| 17 | 707-41-10060 | • PLATE | 1 |
| 18 | 707-36-90371 | • PISTON | 1 |
| 19 | 707-44-90080 | • RING,PISTON | 1 |
| 20 | 07155-00925 | • RING,WEAR | 1 |
| 21 | 07165-14244 | • NUT | 1 |
| 22 | 07020-00675 | FITTING,GREASE | 1 |
| 23 | 201-63-66371 | TUBE | 1 |
| 24 | 07235-10422 | ELBOW | 2 |
| 25 | 07002-12034 | O-RING | 2 |
| 26 | 707-88-99880 | BAND | 1 |
| 27 | 707-88-99960 | BAND | 1 |
| 28 | 01010-51035 | BOLT | 2 |
| 29 | 01602-21030 | WASHER,SPRING | 2 |
| 30 | 07283-22236 | CLIP | 1 |
| 31 | 01599-01011 | NUT | 2 |
| 32 | 01643-31032 | WASHER | 2 |
Suitable for KOMATSU:
PCC60-5, PC60L-5,PC60U-5,PC75UU-1
For delivery options to your country, please do not hesitate to contact us!
Product photos are for illustrative purposes and may differ from the actual appearance of the item. This does not affect the characteristics of the product.
The names Komatsu, Hitachi or any other original equipment manufacturers are registered trademarks of the respective original equipment manufacturers. All names, descriptions, numbers and symbols are used for reference purposes only.
Satellite Nikis Ltd. is in no way associated with any of the manufacturers we have listed. All manufacturer's names and descriptions are for reference only.
In stock 1 pcs.

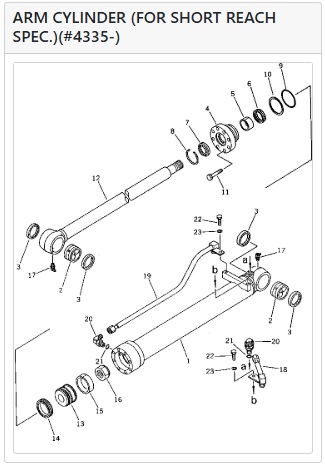

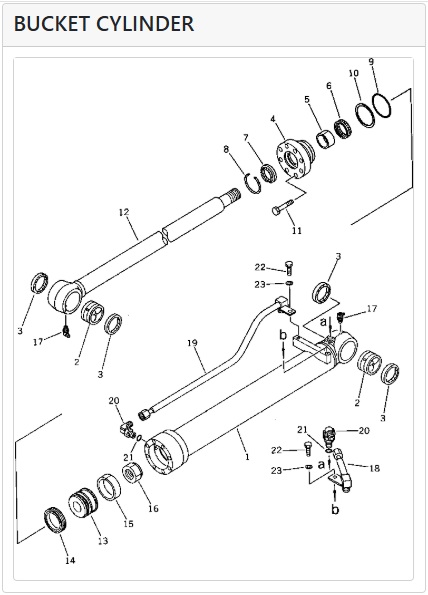

Arm Cylinder Seal Kit (for short reach spec.) /bucket cylinder 201-63-02030 for KOMATSU excavators
Repair kit for the arm cylinder of KOMATSU excavators.
Piston diameter (d): 55.00 mm
Cylinder diameter (D): 90.00 mm
Related products:
| POS. | Number | Name | Qty. |
| 201-63-02030 | CYLINDER ASSEMBLY | 1 | |
| 1 | 201-63-76340 | • CYLINDER | 1 |
| 2 | 707-76-60080 | • BUSHING | 2 |
| 3 | 07145-00060 | • SEAL,DUST | 4 |
| 4 | 707-27-90170 | • HEAD,CYLINDER | 1 |
| 5 | 07177-05530 | • BUSHING | 1 |
| 6 | 707-51-55211 | • PACKING,ROD | 1 |
| 7 | 707-56-55510 | • SEAL,DUST | 1 |
| 8 | 07179-00077 | • RING,SNAP | 1 |
| 9 | 07000-12090 | • O-RING | 1 |
| 10 | 07001-02090 | • RING,BACK-UP | 1 |
| 11 | 01010-81450 | • BOLT | 8 |
| 12 | 20X-63-76520 | • ROD,PISTON | 1 |
| 13 | 707-36-90271 | • PISTON | 1 |
| 14 | 707-44-90080 | • RING,PISTON | 1 |
| 15 | 07155-00925 | • RING,WEAR | 1 |
| 16 | 07165-13941 | • NUT | 1 |
| 17 | 07020-00675 | FITTING,GREASE | 2 |
| 18 | 201-63-76380 | TUBE | 1 |
| 19 | 201-63-76370 | TUBE | 1 |
| 20 | 07235-10422 | ELBOW | 2 |
| 21 | 07002-12034 | O-RING | 2 |
| 22 | 01010-51020 | BOLT | 2 |
| 23 | 01643-31032 | WASHER | 2 |
Suitable for KOMATSU:
PC50UU-1 - arm cylinder (for short reach spec.)
PC60-5, PC75UU-1, PC60L-5, PC60U-5, PW60-3, PW60S-3 - bucket cylinder
For delivery options to your country, please do not hesitate to contact us!
Product photos are for illustrative purposes and may differ from the actual appearance of the item. This does not affect the characteristics of the product.
The names Komatsu, Hitachi or any other original equipment manufacturers are registered trademarks of the respective original equipment manufacturers. All names, descriptions, numbers and symbols are used for reference purposes only.
Satellite Nikis Ltd. is in no way associated with any of the manufacturers we have listed. All manufacturer's names and descriptions are for reference only.
In stock 1 pcs.
Bucket Cylinder Seal Kit 20T-63-02080 KOMATSU excavators
Repair kit for the bucket lift cylinder of KOMATSU excavators.
Piston diameter (d): 50.00 mm
Cylinder diameter (D): 80.00 mm
Related products:
| Pos. | Part No | Qty | Parts name |
| G-1. | 20T-63-X2080 | [1] | BUCKET CYLINDER G. |
| 20T-63-02080 | [1] | CYLINDER ASS'Y | |
| 1 | 20T-63-76640 | [1] | CYLINDER |
| 2 | 07143-10405 | [1] | BUSHING |
| 3 | 07145-00045 | [2] | SEAL,DUST |
| 4 | 707-29-80740 | [1] | HEAD,CYLINDER |
| 5 | 07177-05030 | [1] | BUSHING |
| 6 | 707-51-50211 | [1] | PACKING,ROD |
| 7 | 176-63-92240 | [1] | SEAL,DUST |
| 07016-20507 | [1] | SEAL,DUST | |
| 8 | 07179-12062 | [1] | RING,SNAP |
| 9 | 07000-12075 | [1] | O-RING |
| 10 | 07146-02076 | [1] | RING,BACK-UP |
| 11 | 07000-02080 | [1] | O-RING OEM |
| 12 | 20T-63-76620 | [1] | ROD,PISTON |
| 13 | 07144-10405 | [1] | BUSHING |
| 15 | 07020-00900 | [1] | FITTING,GREASE |
| 16 | 707-36-80370 | [1] | PISTON |
| 17 | 707-44-80180 | [1] | RING,PISTON |
| 18 | 07156-00810 | [1] | RING,WEAR |
| 19 | 07165-13638 | [1] | NUT |
| 20 | 20T-63-76670 | [1] | TUBE |
| 21 | 07283-22236 | [1] | CLIP |
| 22 | 01599-01011 | [2] | NUT |
| 23 | 164 331 032 | [2] | WASHER |
Suitable for:
PC40-6
Manufacturer:
For delivery options to your country, please do not hesitate to contact us!
Product photos are for illustrative purposes and may differ from the actual appearance of the item. This does not affect the characteristics of the product.
The names Komatsu, Hitachi or any other original equipment manufacturers are registered trademarks of the respective original equipment manufacturers. All names, descriptions, numbers and symbols are used for reference purposes only.
Satellite Nikis Ltd. is in no way associated with any of the manufacturers we have listed. All manufacturer's names and descriptions are for reference only.
In stock 1 pcs.
Bucket Cylinder Seal Kit 21S-63-02030 KOMATSU excavators
Repair kit for the bucket lift cylinder of KOMATSU excavators.
Related products:
| Pos. | Part No | Qty | Parts name |
| 21S-63-02030 | [1] | CYLINDER ASSEMBLY,BUCKET PAINT(1) | |
| 1 | 21S-63-76140 | [1] | CYLINDER |
| 2 | 707-76-25020 | [1] | BUSHING |
| 3 | 07145-00025 | [2] | SEAL,DUST |
| 4 | 707-29-50701 | [1] | HEAD,CYLINDER |
| 5 | 07177-02525 | [1] | BUSHING |
| 6 | 707-51-25210 | [1] | PACKING,ROD |
| 7 | 07016-20256 | [1] | SEAL,DUST |
| 8 | 07179-12037 | [1] | RING,SNAP |
| 9 | 07000-13045 | [1] | O-RING |
| 10 | 707-35-52510 | [1] | RING,BACK-UP |
| 11 | 07000-03048 | [1] | O-RING |
| 12 | 21S-63-76120 | [1] | ROD,PISTON |
| 15 | 707-36-50610 | [1] | PISTON |
| 16 | 07161-10050 | [1] | RING,PISTON |
| 17 | 10E-63-32390 | [1] | RING,WEAR |
| 18 | 707-68-10180 | [1] | NUT |
Suitable for:
PC03-1
Manufacturer:
For delivery options to your country, please do not hesitate to contact us!
Product photos are for illustrative purposes and may differ from the actual appearance of the item. This does not affect the characteristics of the product.
The names Komatsu, Hitachi or any other original equipment manufacturers are registered trademarks of the respective original equipment manufacturers. All names, descriptions, numbers and symbols are used for reference purposes only.
Satellite Nikis Ltd. is in no way associated with any of the manufacturers we have listed. All manufacturer's names and descriptions are for reference only.
In stock 1 pcs.
Boom Cylinder Seal Kit 21S-63-02010 for KOMATSU excavators
Repair kit for the boom cylinder of KOMATSU excavators.
Related parts:
| Pos. | Part No | Qty | Parts name |
| 21S-63-02010 | [1] | CYLINDER ASSEMBLY,BOOM PAINT(1) | |
| 1 | 21S-63-56140 | [1] | CYLINDER |
| 2 | 707-76-25020 | [1] | BUSHING |
| 3 | 07145-00025 | [2] | SEAL |
| 4 | 707-29-50321 | [1] | HEAD,CYLINDER |
| 5 | 07177-02525 | [1] | BUSHING |
| 6 | 707-51-25210 | [1] | PACKING,ROD |
| 7 | 07016-20256 | [1] | SEAL,DUST |
| 8 | 07179-12037 | [1] | RING,SNAP |
| 9 | 07000-13045 | [2] | O-RING |
| 10 | 707-35-52510 | [1] | RING,BACK-UP |
| 11 | 07000-03048 | [1] | O-RING |
| 12 | 07001-03045 | [1] | RING,BACK-UP |
| 13 | 21S-63-56120 | [1] | ROD,PISTON |
| 16 | 707-36-50910 | [1] | PISTON |
| 17 | 707-40-50050 | [1] | RETAINER |
| 18 | 707-71-50130 | [1] | PLUNGER |
| 19 | 07161-10050 | [1] | RING,PISTON |
| 20 | 10E-63-32390 | [1] | RING,WEAR |
| 21 | 07165-11618 | [1] | NUT |
Suitable for KOMATSU:
PC03-1
Manufacturer:
For delivery options to your country, please do not hesitate to contact us!
Product photos are for illustrative purposes and may differ from the actual appearance of the item. This does not affect the characteristics of the product.
The names Komatsu, Hitachi or any other original equipment manufacturers are registered trademarks of the respective original equipment manufacturers. All names, descriptions, numbers and symbols are used for reference purposes only.
Satellite Nikis Ltd. is in no way associated with any of the manufacturers we have listed. All manufacturer's names and descriptions are for reference only.
In stock 1 pcs.
Cylinder Seal Kit 20N-30-47810 for KOMATSU excavators
Repair kit for cylinder of KOMATSU excavators.
Related products:
| Pos. | Part No | Qty | Parts name |
| 1 | 20N-30-41852 | [2] | BRACKET |
| 1 | 20N-30-41851 | [2] | BRACKET |
| 1 | 20N-30-41850 | [2] | BRACKET |
| 2 | 20R-30-21220 | [2] | SPRING,RECOIL |
| 3 | 20N-30-47810 | [2] | CYLINDER |
| 3 | 20N-30-41515 | [2] | CYLINDER |
| 3 | 20N-30-41812 | [2] | CYLINDER |
| 4 | 21U-30-11130 | [2] | NUT |
| 4 | 01590-12226 | [2] | NUT |
| 5 | 04050-15045 | [2] | PIN,COTTER |
| 5 | 04050-15040 | [2] | PIN,COTTER |
| 6 | 07000-13035 | [2] | O-RING |
| 7 | 20N-30-47830 | [2] | RING,BACK-UP |
| 7 | 07001-03035 | [2] | RING,BACK-UP |
| 8 | 20N-30-41530 | [2] | SEAL,DUST |
| 9 | 20N-30-41822 | [2] | ROD |
| 10 | 20M-30-31240 | [2] | VALVE |
| 11 | 07020-00675 | [2] | FITTING,GREASE |
| 11 | 07020-00900 | [2] | FITTING,GREASE |
| 12 | 01010-51235 | [8] | BOLT |
| 13 | 01643-51232 | [8] | WASHER |
Suitable for KOMATSU:
PC10-5, PC10-6 ,PC12UU-1 ,PC15-1, PC15-2 ,PC15-2A ,PC15T-2
For delivery options to your country, please do not hesitate to contact us!
Product photos are for illustrative purposes and may differ from the actual appearance of the item. This does not affect the characteristics of the product.
The names Komatsu, Hitachi or any other original equipment manufacturers are registered trademarks of the respective original equipment manufacturers. All names, descriptions, numbers and symbols are used for reference purposes only.
Satellite Nikis Ltd. is in no way associated with any of the manufacturers we have listed. All manufacturer's names and descriptions are for reference only.
In stock 1 pcs.
Arm Cylinder Seal Kit 20N-63-66701/707-98-12450 for KOMATSU excavators
Repair kit for the arm cylinder of KOMATSU excavators.
Piston diameter (d): 60.00 mm
Cylinder diameter (D): 100.00 mm
Related products:
| Pos. | Part No | Qty | Parts name |
| 20N-63-66701 | [1] | CYLINDER ASSY | |
| 1 | 20N-63-66741 | [1] | CYLINDER |
| 2 | 07143-10304 | [1] | BUSHING |
| 3 | 07145-00035 | [2] | SEAL,DUST OEM |
| 4 | 707-29-70920 | [1] | HEAD,CYLINDER |
| 5 | 07177-03525 | [1] | BUSHING |
| 6 | 707-51-35210 | [1] | PACKING,ROD |
| 7 | 175-63-75190 | [1] | SEAL,DUST |
| 8 | 07179-00054 | [1] | RING,SNAP |
| 9 | 07000-12065 | [1] | O-RING |
| 10 | 07001-02065 | [1] | RING,BACK-UP |
| 11 | 07000-12070 | [1] | O-RING |
| 12 | 20N-63-56520 | [1] | ROD,PISTON |
| 15 | 10E-63-66280 | [1] | RETAINER |
| 16 | 707-36-70120 | [1] | PISTON |
| 17 | 07161-10070 | [1] | RING,PISTON |
| 18 | 07155-00720 | [1] | RING,WEAR |
| 19 | 07165-12729 | [1] | NUT |
Suitable for KOMATSU:
PC10-5
For delivery options to your country, please do not hesitate to contact us!
Product photos are for illustrative purposes and may differ from the actual appearance of the item. This does not affect the characteristics of the product.
The names Komatsu, Hitachi or any other original equipment manufacturers are registered trademarks of the respective original equipment manufacturers. All names, descriptions, numbers and symbols are used for reference purposes only.
Satellite Nikis Ltd. is in no way associated with any of the manufacturers we have listed. All manufacturer's names and descriptions are for reference only.
In stock 1 pcs.
Blade Cylinder Seal Kit 20N-63-02060 /707-98-12700 for KOMATSU excavators
Repair kit for the blade cylinder of KOMATSU excavators.
Piston diameter (d): 35.00 mm
Cylinder diameter (D): 70.00 mm
Relate Products:
| Pos. | Part No | Qty | Parts name |
| 20N-63-02060 | [1] | CYLINDER ASSEMBLE | |
| 1 | 20N-63-96440 | [1] | CYLINDER |
| 2 | 20N-63-96420 | [1] | ROD,PISTON |
| 3 | 07144-10304 | [2] | BUSHING |
| 4 | 07145-00035 | [4] | SEAL,DUST OEM |
| 5 | 07179-12047 | [1] | RING,SNAP |
| 6 | 07016-20357 | [1] | SEAL,DUST |
| 7 | 707-29-70920 | [1] | HEAD,CYLINDER |
| 8 | 07177-03525 | [1] | BUSHING |
| 9 | 707-51-35210 | [1] | PACKING,ROD |
| 10 | 07000-12065 | [1] | O-RING |
| 11 | 07001-02065 | [1] | RING,BACK-UP |
| 12 | 07000-12070 | [1] | O-RING |
| 13 | 707-36-70940 | [1] | PISTON |
| 14 | 07161-10070 | [1] | RING,PISTON |
| 15 | 07156-00710 | [1] | RING,WEAR |
| 16 | 07165-12729 | [1] | NUT |
| 17 | 10E-63-66280 | [1] | RETAINER |
| 18 | 07020-00000 | [1] | FITTING,GREASE |
| 19 | 07020-00675 | [1] | FITTING,GREASE |
Suitable for:
PC10-6, PC15-2,PC15Т
Manufacturer:
For delivery options to your country, please do not hesitate to contact us!
Product photos are for illustrative purposes and may differ from the actual appearance of the item. This does not affect the characteristics of the product.
The names Komatsu, Hitachi or any other original equipment manufacturers are registered trademarks of the respective original equipment manufacturers. All names, descriptions, numbers and symbols are used for reference purposes only.
Satellite Nikis Ltd. is in no way associated with any of the manufacturers we have listed. All manufacturer's names and descriptions are for reference only.
In stock 1 pcs.
Boom Cylinder Seal Kit 707-99-36630 for KOMATSU excavators
Repair kit for the boom cylinder of KOMATSU excavators.
Piston diameter (d): 65.00 mm
Cylinder diameter (D): 115.00 mm
Related products:
| POS. | Number | Name | Qty. |
| G1 | 201-63-X2302 | CYLINDER GROUP,BOOM | 1 |
| 201-63-02302 | CYLINDER ASSEMBLY ,BOOM | 1 | |
| 1 | 201-63-54742 | • CYLINDER,BOOM | 1 |
| 2 | 707-76-65250 | • BUSHING | 1 |
| 3 | 07145-00065 | • SEAL,DUST (KIT) | 2 |
| 4 | 707-29-11800 | • HEAD,CYLINDER | 1 |
| 5 | 707-52-90400 | • BUSHING | 1 |
| 6 | 707-51-65630 | • RING,BUFFER (KIT) | 1 |
| 7 | 707-51-65030 | • PACKING,ROD (KIT) | 1 |
| 8 | 144-63-92170 | • SEAL,DUST (KIT) | 1 |
| 9 | 07179-12079 | • RING,SNAP | 1 |
| 10 | 07000-12110 | • O-RING (KIT) | 1 |
| 11 | 707-35-91610 | • RING,BACK-UP (KIT) | 1 |
| 12 | 07000-02115 | • O-RING (KIT) | 1 |
| 13 | 707-71-33511 | • COLLAR | 1 |
| 14 | 07000-12110 | • O-RING (KIT) | 1 |
| 15 | 707-35-91610 | • RING,BACK-UP (KIT) | 2 |
| 16 | 201-63-54721 | • ROD,PISTON | 1 |
| 17 | 707-76-60180 | • BUSHING | 1 |
| 18 | 07145-00060 | • SEAL,DUST (KIT) | 2 |
| 19 | 707-71-60600 | • PLUNGER | 1 |
| 20 | 707-41-10190 | • WASHER | 1 |
| 21 | 707-36-11600 | • PISTON | 1 |
| 22 | 707-44-11280 | • RING,PISTON (KIT) | 1 |
| 23 | 707-39-11510 | • RING,WEAR (KIT) | 2 |
| 24 | 07165-14547 | • NUT | 1 |
| 25 | 201-63-54771 | TUBE | 1 |
| 26 | 201-63-54781 | TUBE | 1 |
| 27 | 01010-51020 | BOLT | 2 |
| 28 | 01643-31032 | WASHER | 2 |
| K | 707-99-36630 | SERVICE KIT,BOOM CYLINDER | 1 |
Suitable for KOMATSU:
PC60-7, PC60-7-B, PC60-7E, PC60-7E-B, PC60-7S, PC60-7S-B, PC70-7, PC70-7-B, PC70-7E, PC70-7E-B
Manufacturer:
For delivery options to your country, please do not hesitate to contact us!
Product photos are for illustrative purposes and may differ from the actual appearance of the item. This does not affect the characteristics of the product.
The names Komatsu, Hitachi or any other original equipment manufacturers are registered trademarks of the respective original equipment manufacturers. All names, descriptions, numbers and symbols are used for reference purposes only.
Satellite Nikis Ltd. is in no way associated with any of the manufacturers we have listed. All manufacturer's names and descriptions are for reference only.
In stock 1 pcs.
