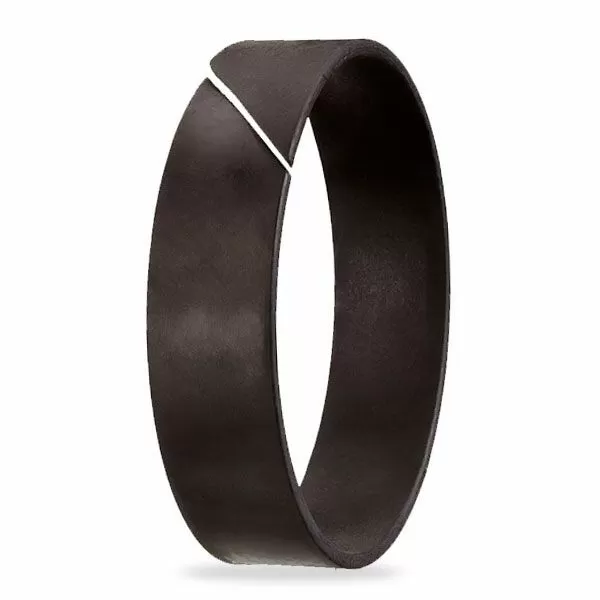

Piston rod guide ring A251 30x33x8.5 POM+фибростъкло
In stock 16 pcs.
- Code:48030033085
- Weight:0.000 Kgs
Piston rod guide rings A251 are suitable for both piston and rod applications in light to medium duty hydraulic cylinders. They are manufactured with with a standard 45 degree cut, and offer appropriate K gap value adjustment with a Z cut design, resistance to medium radial loads (up to 40 Newton/mm2), very easy snap installation, very economic bearing solution, excellent stability to operating temperatures. Suitable for use in mineral hydraulic oils.
Material: glass filled Polyacetal.

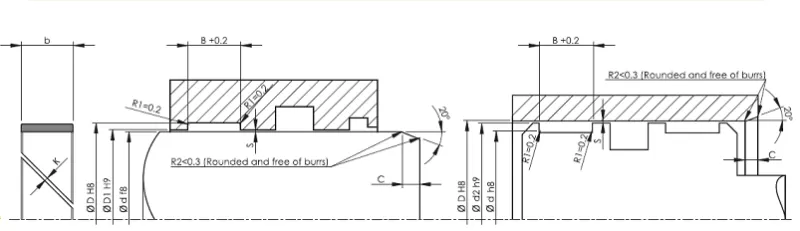

Dimensions: d=30 mm D=33 mm b=8.5 mm
|
TECHNICAL DATA |
||
|
Working temperature |
-40 +110 °C |
|
|
Sliding speed |
1.0 m/s |
|
|
Material |
POM + fiberglass |
|
|
Media |
mineral hydraulic oils |
|
|
Surface roughness |
||
|
|
Ra |
Rmax |
|
Dynamic surface |
≤ 0.4 μm |
≤ 3,2 μm |
|
Groove base |
≤ 2.5 μm |
≤ 6.3 μm |
|
Groove flanks |
≤ 3.2 μm |
≤ 16 μm |
