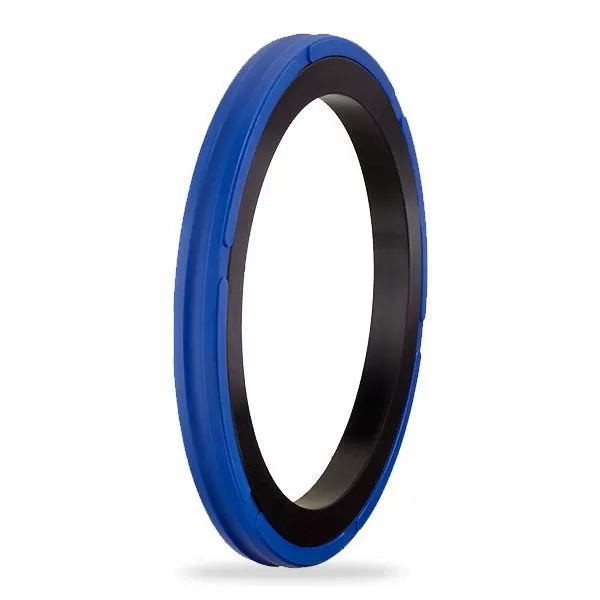

A110 double acting piston seal 25x17.5x3.2 PU98 + NBR80

Price: €3.16

In stock 9 pcs.

  • Code:
    33025017032
  • Weight:
    0.001 Kgs

Double acting piston seal set consisting of one PU98 ring and one NBR90 energizing ring.

For piston applications of hydraulic cylinders.



For delivery options to your country, please do not hesitate to contact us!

Estimated Shipping

to Targovishte starts at €5.18outside Targovishte starts at €5.28
to Targovishte starts at €2.73outside Targovishte starts at €2.73
Quantity:+-
Add to wishlist
A110 double acting piston seal 25x17.5x3.2 PU98 + NBR80
A110 double acting piston seal 25x17.5x3.2 PU98 + NBR80A110 double acting piston seal 25x17.5x3.2 PU98 + NBR80

A110 double acting piston seal is designed to be used in piston applications of medium to heavy duty hydraulic cylinders. They are commonly used, thanks to their good price-performance ratio.

As a standard, A110 is manufactured as a two-piece set consisting of one PU98 ring and one energizing NBR80 ring. It is an economic solution that offers easy one-piece installation, very good static and dynamic sealing performance, simple low height groove design with a no-twisting energizer, and is suitable to be used even in low working velicities

It is recommended that A110 be used in combination with at least one guiding element, such as A251, A254, A255, A256, depending on the working conditions.



TECHNICAL DATA

Working pressure

400 bar

Working temperature

-30 +105 °C

Sliding speed

0.5 m/s

Material

NBR80/PU98

Media

Mineral-base hydraulic oils

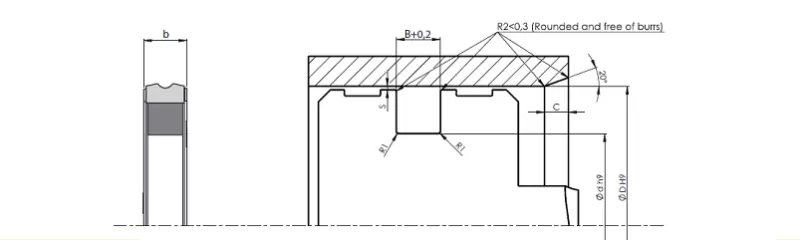

Surface Roughness



Ra

Rmax

Dynamic surface

≤ 0.4 μm

≤ 3.0 μm

Groove base

≤ 1.6 μm

≤ 6.3 μm

Groove flanks

≤ 3.2 μm

≤ 16.0 μm
