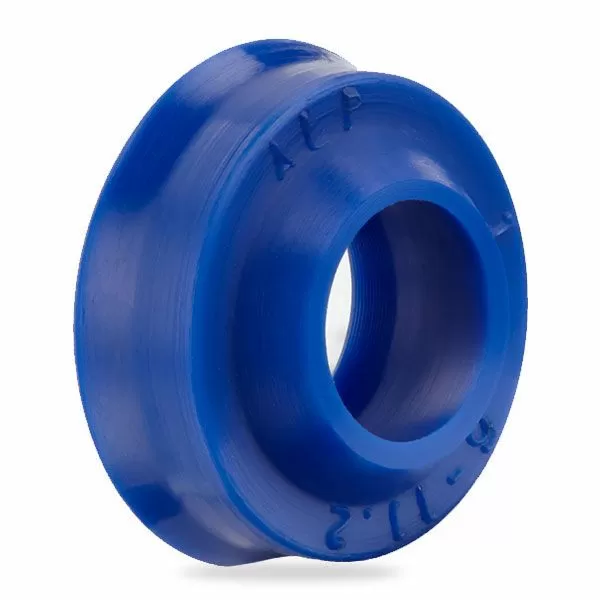

A853 pneumatic rod seal/wiper 32x37.5x5/4.25 PU92
In stock 18 pcs.
- Code:54032037051
- Weight:0.005 Kgs
A853 is a single acting combined seal/wiper designed to be used in rod applications of pneumatic cylinders, performing simultaneously sealing and wiping functions.
Material: PU92
Color: blue
For delivery options to your country, please do not hesitate to contact us!
Estimated Shipping
to Targovishte starts at €5.18outside Targovishte starts at €5.28
to Targovishte starts at €2.73outside Targovishte starts at €2.73
A853 is a single acting combined seal/wiper designed to be used in rod applications of pneumatic cylinders, performing simultaneously sealing and wiping functions. It is manufactured from high specification PU92 or NBR90 compounds as a standard.
A853 pneumatic rod seal/wiper offers excellent sealing performance even in very small assembly conditions. It also offers high wear resistance, long service life, easy installation, resistance to very harsh working conditions because of its robust profile design, very low dynamic and static friction and smooth running due to lip geometry and is suitable for oiled or oil-free working conditions (note that the seal should be lubricated on assembly).
A853 can be used safely for compact and small pneumatic cylinders.
|
TECHNICAL DATA |
||
|
Standard materials |
PU |
NBR |
|
Working pressure |
16 bar |
12 bar |
|
Working temperature |
-30 +80 °C |
-30 +105 °C |
|
Sliding speed |
1.0 m/s |
1.0 m/s |
|
Material |
PU 92 |
NBR 90 |
|
Media |
Dry compressed air |
Dry, oiled compressed air |
|
Surface Roughness |
||
|
|
Rmax |
|
|
Dynamic surface |
≤ 4 μm |
|
|
Groove base |
≤ 10 μm |
|
|
Groove flanks |
≤ 15 μm |
|
