Metal clad wiper A203-080 80x90x7/10 NBR90 Alp
- Code:57080090072
- Weight:0.000 Kgs

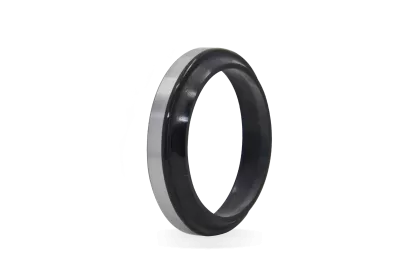

Metal clad wiper for hydraulic cylinder.
Material: nitrile rubber (NBR)/ metal.
Metal clad wipers provide greater wear resistance and lifespan due to their outer metal shell.
A203 NBR wiper have a metal case and are used to prevent foreign particles and debris from entering into the hydraulic system. Special vulcanization processes are used during production.
These seals are interference-fitted into the groove. Proper tools should be used during assembly to make sure that the seal and grooves are not damaged.
TECHNICAL DATA | ||
Working Temperature | -30/+100°C | |
Sliding Speed | 0.8 m/sn | |
Material | 90 NBR / METAL | |
Surface Roughness | ||
Ra | Rmax | |
Dynamic Surface | ≤0.4 μm | ≤3.2 μm |
Groove Base | ≤1.6 μm | ≤10.0 μm |
Groove Flanks | ≤3.2 μm | ≤16.0 μm |
Мanufactured sizes: HERE
Manufacturer:
ALP KAUCUK SANAYI VE TICARET A.S.
For delivery options to your country, please do not hesitate to contact us!
Мanufactured sizes:
ALP NO
|
DIMENSION | Ød | ØD | b | B |
A203-020/3
|
20X30X10/7 | 20 | 30 | 7 | 10 |
A203-022/2 | 22X32X10/7 | 22 | 32 | 7 | 10 |
A203-025/1 | 25X35X10/7 | 25 | 35 | 7 | 10 |
A203-030/4 | 30X40X10/7 | 30 | 40 | 7 | 10 |
A203-032/3 | 32X45X10/7 | 32 | 45 | 7 | 10 |
A203-035 | 35X45X10/7 | 35 | 45 | 7 | 10 |
A203-036/2 | 36X45X10/7 | 36 | 45 | 7 | 10 |
A203-040 | 40X50X10/7 | 40 | 50 | 7 | 10 |
A203-040/1 | 40X50X8/5 | 40 | 50 | 5 | 8 |
A203-045 | 45X55X10/7 | 45 | 55 | 7 | 10 |
A203-045/1 | 45X58X10/7 | 45 | 58 | 7 | 10 |
A203-050 | 50X60X10/7 | 50 | 60 | 7 | 10 |
A203-060 | 60X70X10/7 | 60 | 70 | 7 | 10 |
A203-063 | 63X75X10/7 | 63 | 75 | 7 | 10 |
A203-065 | 65X75X10/7 | 65 | 75 | 7 | 10 |
A203-070 | 70X80X10/7 | 70 | 80 | 7 | 10 |
A203-075 | 75X85X10/7 | 75 | 85 | 7 | 10 |
A203-080 | 80X90X10/7 | 80 | 90 | 7 | 10 |
A203-090 | 90X100X10/7 | 90 | 100 | 7 | 10 |
A203-100 | 100X110X10/7 | 100 | 110 | 7 | 10 |
A203-105 | 105X115X10/7 | 105 | 115 | 7 | 10
|
