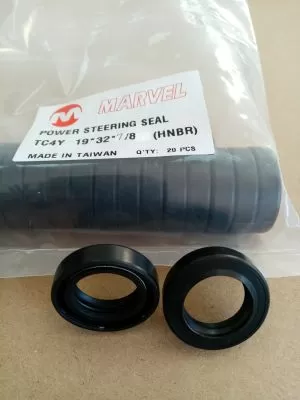

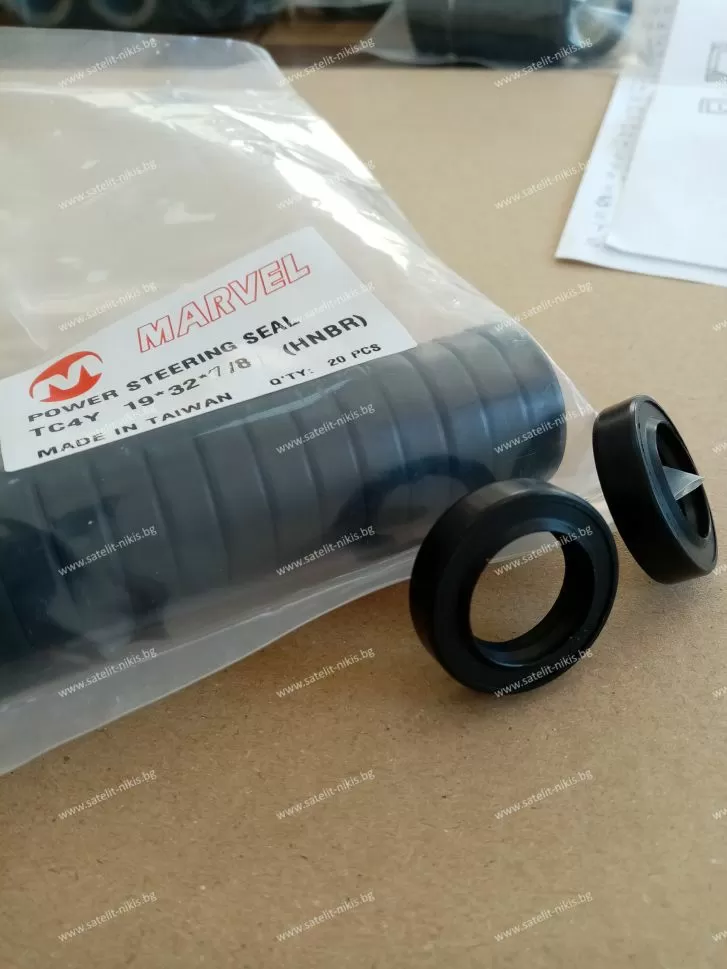

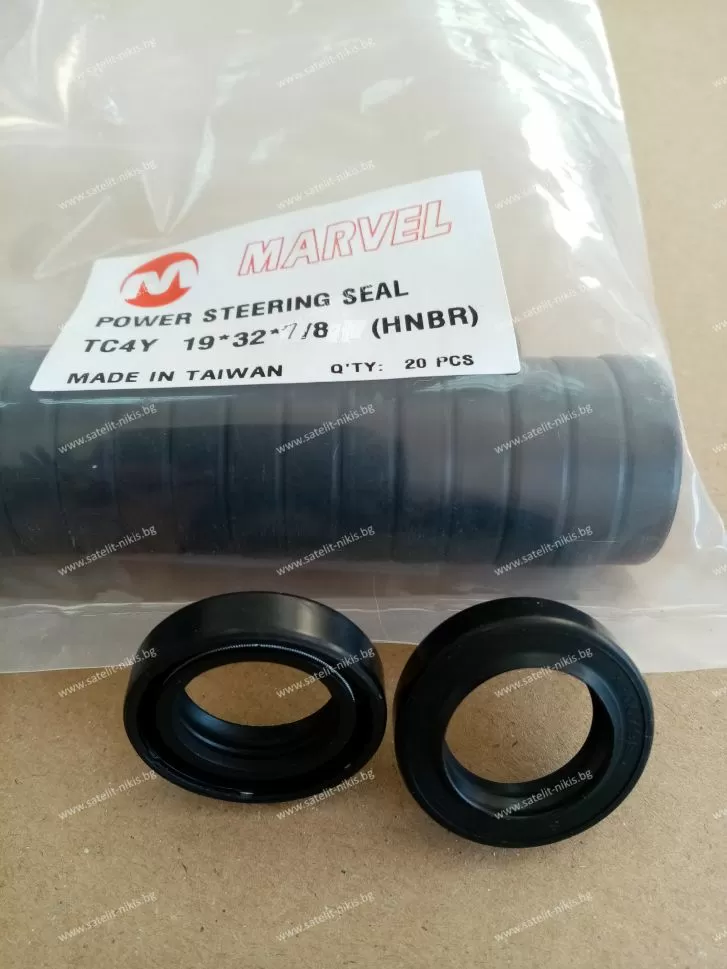

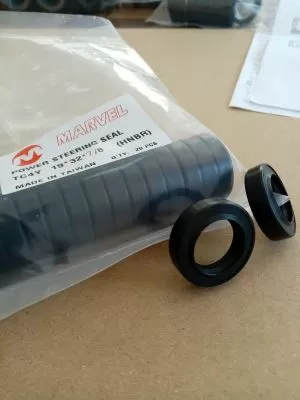

Oil seal TC4Y 19x32x7/8 HNBR MARVEL/TW, for steering LEXUS,TOYOTA 90311-19013/ AP8096G
In stock 20 pcs.
- Code:19x32x7/8
- Weight:0.020 Kgs
Oil seal type TC4Y , with dust lip ,with an additional sealing edge and with spring.
Material: hydrogenated nitrile rubber (HNBR)
Helix:
OE references:
LEXUS,TOYOTA 90311-19013/ AP8096G
Suitable for steering of:
The nitrile rubber may vary in color from the one shown in the picture, without this affecting the sealing properties of the oil seal.
Manufacturer:
For delivery options to your country, please do not hesitate to contact us!
Product photos are for illustrative purposes and may differ from the actual appearance of the item. This does not affect the characteristics of the product.
100% Made In Taiwan
Estimated Shipping
to Targovishte starts at €5.36outside Targovishte starts at €5.46
to Targovishte starts at €2.86outside Targovishte starts at €2.86
Suitable for:
- Lexus GS300, JZS147, JZS160
- Lexus GS400, UZS160
- Lexus GS430, UZS161
- Lexus IS200, GXE10
- Lexus IS300, JCE10
- Toyota Altezza, GXE10, GXE10W, SXE10
- Toyota Aristo, JZS147, JZS147E, JZS160, JZS161, UZS143, UZS143E
- Toyota Chaser, GX100, GX105, JZX100, JZX101, JZX105, JZX90, JZX91, JZX93, LX100, SX100
- Toyota Comfort, LXS10, LXS12, YXS10
- Toyota Cresta, GX100, GX105, JZX100, JZX101, JZX105, JZX90, JZX91, JZX93, LX100
- Toyota Crown Majesta, GS151, GS171, JZS151, JZS153, JZS155, JZS157, JZS171, JZS173, JZS175, JZS179, LS151, UZS155, UZS173
- Toyota Crown, GS151, GS151H, GS171, GS171W, GXS10, JZS151, JZS153, JZS155, JZS157, JZS171, JZS171W, JZS173, JZS173W, JZS175, JZS175W, JZS179, LS151, LS151H, LXS10, LXS11, LXS12, SXS11, UZS155, UZS173, YXS10, YXS10H, YXS11
- Toyota Dyna, BU306, BU346, XZU306, XZU307, XZU308, XZU336, XZU337, XZU338, XZU346, XZU347, XZU348, XZU368, XZU368D, XZU378, XZU388, XZU488, XZU568
- Toyota Estima, ACR30, ACR30W, ACR40, ACR40W, MCR30, MCR30W, MCR40, MCR40W
- Toyota Mark II, GX100, GX105, JZX100, JZX101, JZX105, JZX90, JZX90E, JZX91, JZX91E, JZX93, LX100
- Тойота произход, JCG17
- Toyota Previa, ACR30, CLR30
- Toyota Progres, JCG10, JCG11, JCG15
- Toyota Tarago, ACR30, CLR30
- Toyota ToyoAce, BU306, BU346, XZU306, XZU307, XZU308, XZU336, XZU337, XZU338, XZU346, XZU347, XZU348, XZU368, XZU368D, XZU378, XZU388, XZU488, XZU568
Strengths & Limitations
Temperature Resistance
Low temperatures around -30°C (up to -40°C for special types)
High temperatures up to +150°C
Chemical & Aging Resistance
Strengths
Resistant to oil-based fluids, including gasoline, petroleum, and kerosene
Effective against mineral oils, fats, and greases
Compatible with vegetable oils, fats, and greases
Durable in the presence of bio oils (biological oils)
Withstands glycol-based coolants
Resistant to hot water and steam up to 150°C (specifically for peroxide-cured types)
Resistant to sour gas (widely used in the oil and gas industry)
Limitations
Strong acids and bases
Long term exposure to UV/sunlight
HNBR vs NBR
HNBR offers superior resistance to high temperatures
HNBR is resistant to steam
HNBR provides broader chemical resistance
HNBR has enhanced resistance to ozone, UV, and sunlight
