Hydraulic piston and rod seal UPH-16 16x26x8 NBR90 up to 320 bar KVK/China
Price: €0.97
In stock 10 pcs.
- Code:55016026082
- Weight:0.020 Kgs
Product data

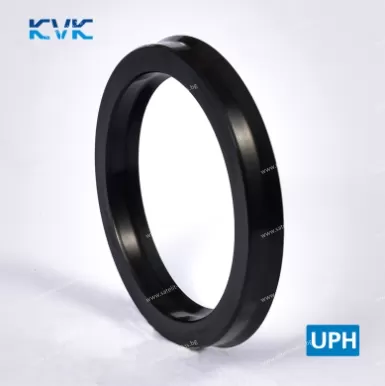

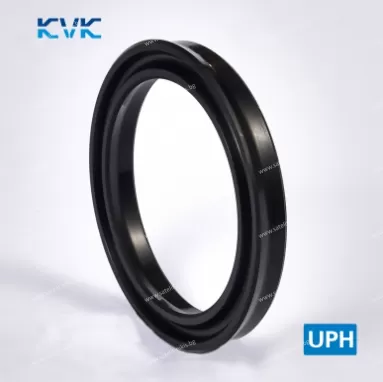

The hydraulic seal UPH has a symmetrical design and is suitable for both piston and rod.

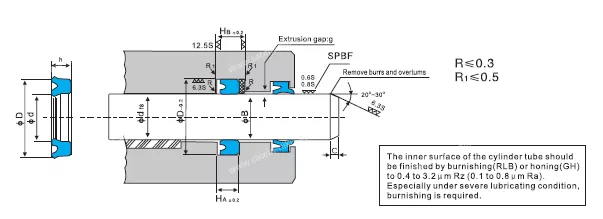

Модел | Ød | ØD | h | ØD1 | HA | HB | r |
UPH-16 | 16 | 26 | 8 | 25 | 9 | 11 | 2.5 |
Material: NBR90
Application range (the following limit values cannot appear at the same time):
Pressure: ≤ 320 bar; when the pressure is higher than 150 bar, it is recommended to use a back-up ring
Speed: ≤ 0.5 m/s
Temperature: -30°C ~ +100°C
Media: mineral-based hydraulic oils and emulsions; not suitable for environmetally-friendly oils (bio oils)
Manufacturer:
Zhongxingshun Sealing Products Factory
