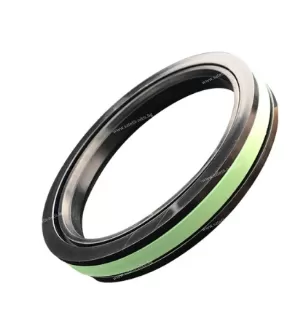

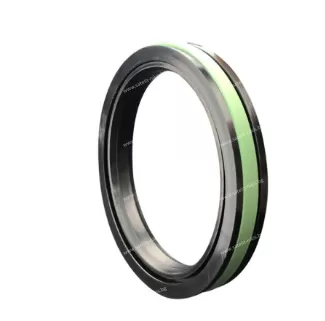

Hydraulic piston seal SPGW-75 75x60x10.5 NBR80/PTFE+Bronze/polyamide resin up to 400 bar KVK/China
-
Code:32075060105
-
Weight:0.023 Kgs
Product data
ØD=75 mm ; Ød=60 mm ; H=10.5 mm ; L=11 mm
Material: NBR80/PTFE+Bronze/polyamide resin
Application range (the following limit values cannot appear at the same time):
Pressure: ≤ 400 bar
Speed: ≤ 1.5 m/s
Temperature: -20°C ~ +120°C
Media: mineral-based hydraulic oils
Manufacturer:
Zhongxingshun Sealing Products Factory
Estimated Shipping
to Targovishte starts at
€3.11
outside Targovishte starts at
€3.21
outside Targovishte starts at
€3.09
to Targovishte starts at
€3.09
The two-way piston seal type SPGW consists of a modified PTFE+bronze, a high-performance NBR 80 Shore piston seal ring and two thermoplastic elastomer support rings. It is used to seal the piston of hydraulic cylinders. SPGW is a high pressure working seal. SPGW type is suitable for forklift boom cylinders, cantilever cylinders and bucket cylinders. Bulldozer lifting cylinders, shovel cylinders, crane sliding cylinders, hydraulic suspension cylinders, dump trucks, presses, injection molding machines, etc.
