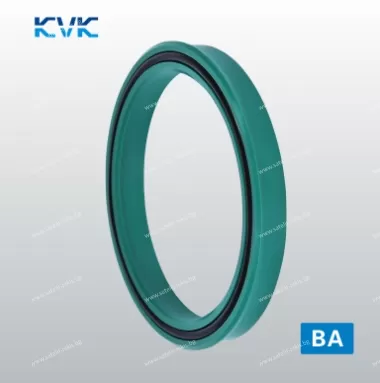

Hydraulic rod seal BA 50x60x10 PU93 + О-ring NBR70 до 350 bar KVK/China
In stock 10 pcs.
- Code:55050060109
- Weight:0.020 Kgs
Product data
Ød=50 mm ; ØD=60 mm ; h=10 mm L=11 mm
Material: PU93+NBR70
Application range (the following limit values cannot appear at the same time):
Pressure: ≤ 350 bar
Speed: ≤ 0.5 m/s
Temperature: -35°C ~ +90°C
Media: mineral hydraulic oils, water-glycol hydraulic oils, emulsions
Manufacturer:
Zhongxingshun Sealing Products Factory
Estimated Shipping
to Targovishte starts at €3.11outside Targovishte starts at €3.21
to Targovishte starts at €2.86outside Targovishte starts at €2.86
Product Description

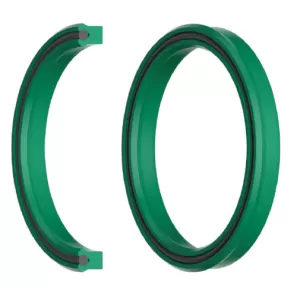

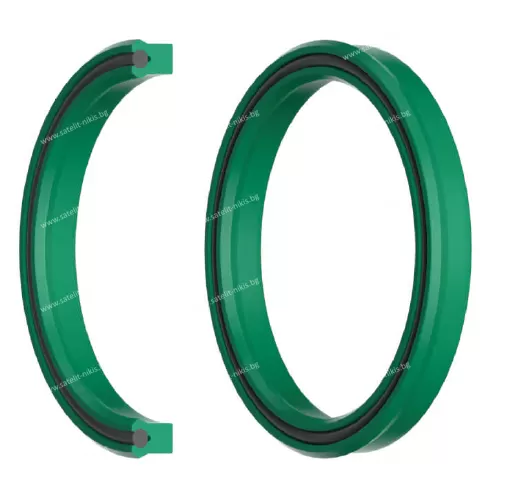

Type BA is the result of the progressive development of a lip seal. It combines the advantages of highly elastic O-rings and wear resistance of lip seal materials. This special seal is mainly used in mobile equipment due to its special structure (fitted with O-rings). This O-ring guarantees the amount of preload of the sealing lip under low pressure or vacuum conditions, which is necessary for sealing performance. The sealing force is essentially independent of temperature changes, and the necessary amount of preload is guaranteed even if a certain degree of wear occurs. The lip is loaded by an increase in system pressure, which is transmitted to the lip through the compressively deformed O-ring.
The main advantages are:
Particularly strong wear resistance.
Insensitive to shock loads and pressure peaks.
High crush resistance.
Ideal forehead density under no-load and low temperature conditions
Sealing effect.
For the toughest working conditions.
