Home Wiper Seals Wiper Seal type A8 Wiper seal A8 85x93.6x5.3 PU93 KVK/China

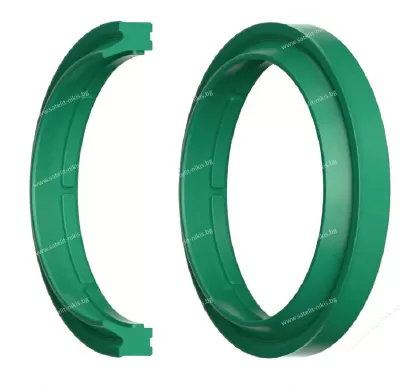

Wiper seal A8 85x93.6x5.3 PU93 KVK/China

Price: €2.28 4.46лв.
  • Code:
    56085093058
  • Weight:
    0.010 Kgs

Product data



Ød=85 mm ; ØD=93.6 mm ; H=7 mm ; L=5.3 mm

Material: PU93



Application range (the following limit values cannot appear at the same time):

Pressure : ≤2MPa
Speed: reciprocating ≤2.0m/s
Temperature: -30°C ~ +100°C
Media: mineral hydraulic oils, water-glycol hydraulic oils, emulsions

Manufacturer:

Zhongxingshun Sealing Products Factory

Estimated Shipping

to Targovishte starts at €3.11 outside Targovishte starts at €3.21
outside Targovishte starts at €3.09 to Targovishte starts at €3.09

In stock 20 pcs.

Add to wishlist
- +
Compliance Information

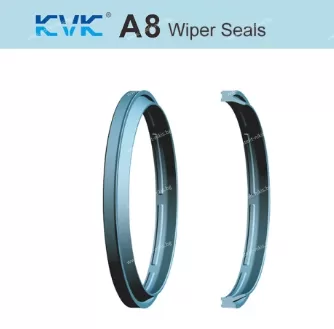

A8 Hydraulic Wiper Seal convex column of the inner ring creates two support points on the pull rod to enhance stability, while the outer flange can effectively prevent foreign objects from invading and extend the service life of the entire system

Application:

The A8 Wiper Ring is used for the axial control rod, plunger, and piston rod of hydraulic cylinders and cylinders.
