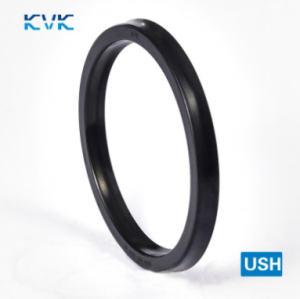

Hydraulic piston and rod seal USH-24 24x32x4 NBR90 up to 210 bar KVK/China
Price: €1.51
In stock 500 pcs.
- Code:55024032042
- Weight:0.002 Kgs
Product data
The hydraulic seal USH has a symmetrical design and is suitable for both piston and rod.
Ød=24 mm ; ØD=32 mm ; h=4 mm ; ØD1=31 mm ; HA=4.6 mm ; HB=6.2 mm ; r=2 mm
Material: NBR90
Application range (the following limit values cannot appear at the same time):
Pressure: ≤ 210 bar; when the pressure is higher than 150 bar, it is recommended to use a back-up ring
Speed: ≤ 0.5 m/s
Temperature: -30°C ~ +100°C
Media: mineral-based hydraulic oils and emulsions; not suitable for environmetally-friendly oils (bio oils)
Manufacturer:
Zhongxingshun Sealing Products Factory
