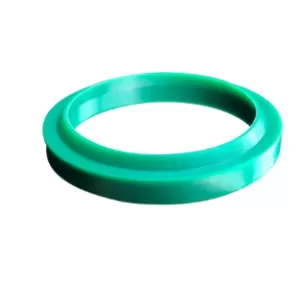

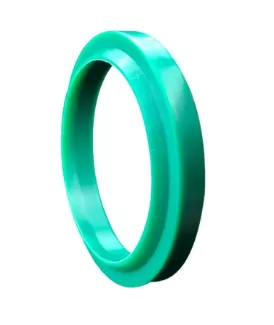

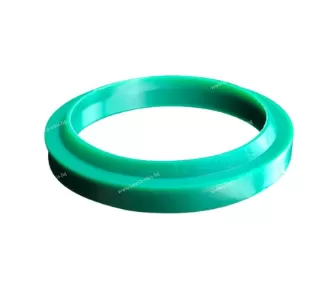

Wiper seal A5 95x103x5.3/7 PU93 KVK/China
-
Code:56095103058
-
Weight:0.010 Kgs
Product data
Ød=95 mm ; ØD=103 mm ; H=7 mm ; L=5.3 mm ;ØD1=103.6 mm ; ØD2=98 mm a=2 mm
Material: PU93
Application range (the following limit values cannot appear at the same time):
Speed: ≤ 2.0 m/s
Temperature: -35°C ~ +100°C
Media: mineral hydraulic oils, water-glycol hydraulic oils, emulsions
Manufacturer:
Zhongxingshun Sealing Products Factory
Estimated Shipping
to Targovishte starts at
€3.11
outside Targovishte starts at
€3.21
outside Targovishte starts at
€3.09
to Targovishte starts at
€3.09
Wipers type A5 are designed for rod application in hydraulic cylinders operating at medium loads. They have a stable sealing edge that effectively prevents the accumulation of external contaminants /moisture, dust, sand, mud, etc./ on the rod, their subsequent entry into the system and causing damage to the internal components of the cylinder. It is manufactured from polyurethane (PU93) as standard, and is available in a wide range of sizes. A5 type wiper is efficient, easy to install, has a simple design, good wear resistance and long service life. It needs to be used together with a suitable rod seal. It finds application in excavation, agricultural machinery, loading equipment, mobile platforms, telescopic cylinders and all kinds of standard cylinders.
