Home Hydraulic Seals Hydraulic rod seals Buffer rings type HBY Buffer ring HBY 45x60.5x6 PU92 + POM до 350 bar KVK/China

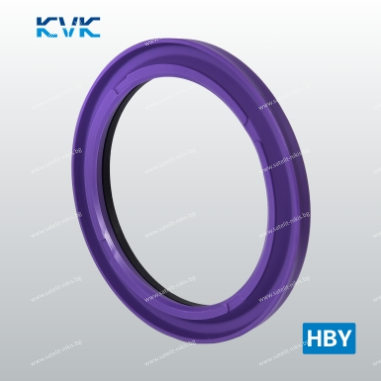

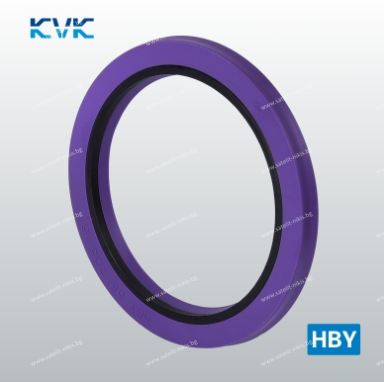

Buffer ring HBY 45x60.5x6 PU92 + POM до 350 bar KVK/China

Price: €5.01 9.80лв.
  • Code:
    590450600631
  • Weight:
    0.011 Kgs

Product data

Ød=45 mm; ØD=60.5 mm; H=6.3 mm; h=6 mm

Material: PU92

Application range (the following limit values cannot appear at the same time):

Pressure: ≤ 350 bar
Speed: ≤1.5 m/s
Temperature: -20°C ~ +80°C
Media: mineral-based hydraulic oils and emulsions

Manufacturer:

Zhongxingshun Sealing Products Factory

Estimated Shipping

to Targovishte starts at €3.11 outside Targovishte starts at €3.21
outside Targovishte starts at €3.09 to Targovishte starts at €3.09

In stock 20 pcs.

Add to wishlist
- +
Compliance Information

BS hydraulic rod seal is a lip type seal that has two sealing lips and fits tightly at the outer diameter. Due to the presence of lubricant between the two lips, it greatly prevents dry friction and wear. In some cases, this type of seal can even replace expensive series configurations.



HBY product is used in combination with piston rods to absorb shock and fluctuating pressure under high loads, isolate high temperature fluids, and improve seal durability. Specially shaped front grooves on the sliding lip to relieve back pressure can eliminate the pressure between the Rod Seals and the damper.
