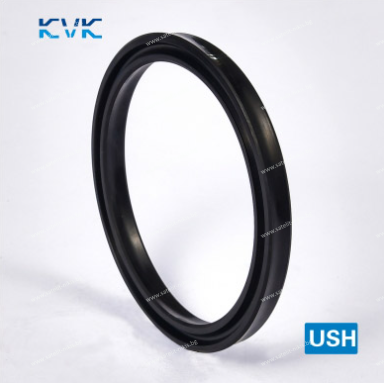

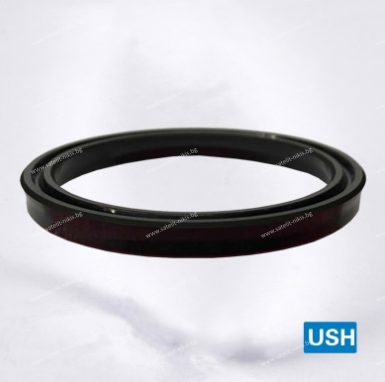

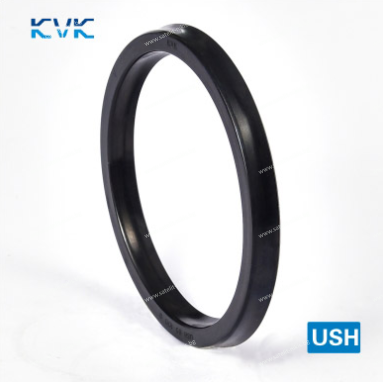

Hydraulic piston and rod seal USH-40 40x50x6 NBR90 up to 210 bar KVK/China

Price: €1.64 3.21лв.
  • Code:
    550400500621
  • Weight:
    0.005 Kgs

Product data

The hydraulic seal USH has a symmetrical design and is suitable for both piston and rod.



Ød=40 mm ; ØD=50 mm ; h=6 mm ; HA=7 mm ; HB=9 mm ; C=3 mm

Material: NBR90

Application range (the following limit values cannot appear at the same time):

Pressure: ≤ 210 bar; when the pressure is higher than 150 bar, it is recommended to use a back-up ring
Speed: ≤ 0.5 m/s
Temperature: -30°C ~ +100°C
Media: mineral-based hydraulic oils and emulsions; not suitable for environmetally-friendly oils (bio oils)

Manufacturer:

Zhongxingshun Sealing Products Factory

Estimated Shipping

to Targovishte starts at €3.11 outside Targovishte starts at €3.21
outside Targovishte starts at €3.09 to Targovishte starts at €3.09

In stock 100 pcs.
