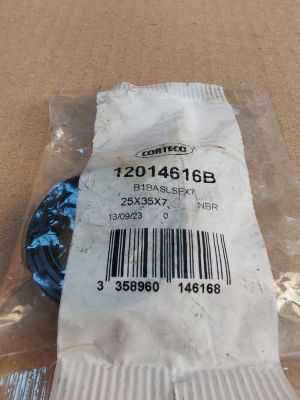

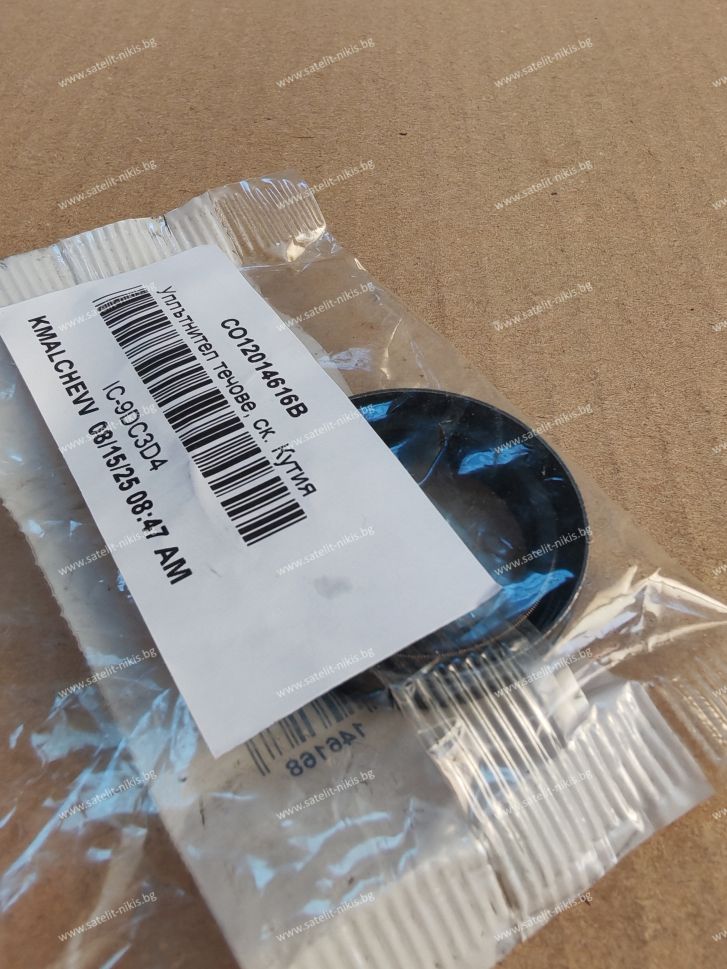

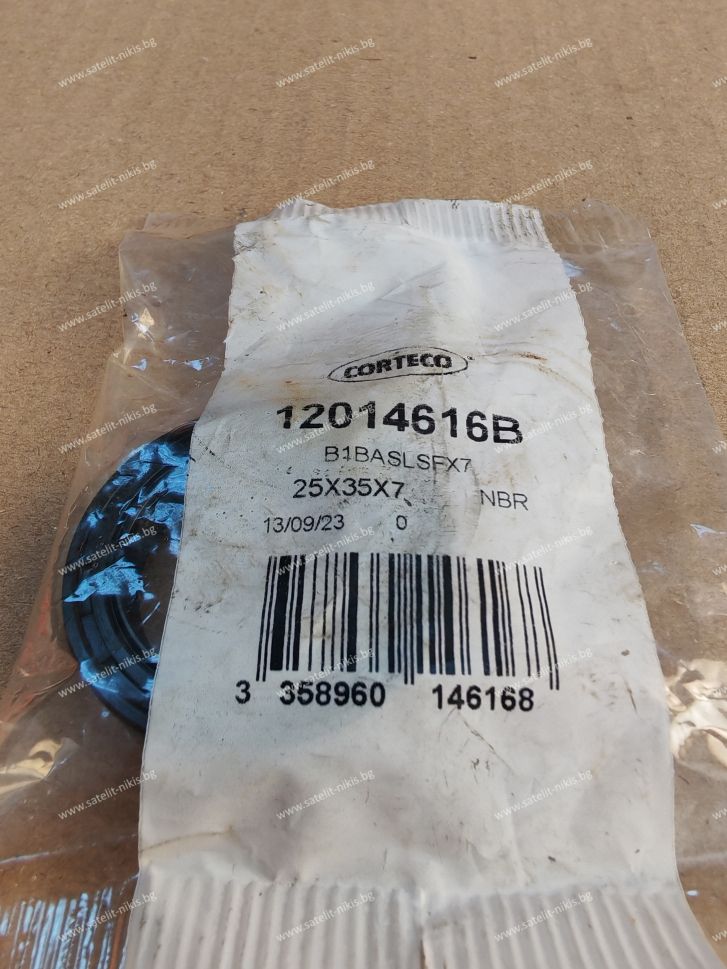

Oil seal B1BASLSFX7 25x35x7 NBR 12014616B CORTECO , for gearboxes of DAF 0140335,IVECO 40101080,MAN 06562611609,MERCEDES 0069974946,RVI 0024472583,SCANIA 3296381,VOLVO 6876 348
-
Code:46025035072
-
Weight:0.010 Kgs
Oil seal type B1BASLSFX7 ( A/BSW) , witht dust lip and with spring.
Dimensions:
Inner diameter: 25.00 mm
Outer diameter 1: 35.00 mm
Height 1: 7.00 mm
Height 2: mm
Material: nitrile rubber (NBR).
Helix line:
OE reference:
DAF 0140335,IVECO 40101080,MAN 06562611609,MERCEDES 0069974946,RVI 0024472583,SCANIA 3296381,VOLVO 6876 348
Suitable for the following gearboxes:
1268.003.635 ;1268.003.779 ;1290.052.267 ;1290.055.120 ;1290.055.131 ;1290.057.156 ;1295.002.130 ;1295.052.232 ;1304.044.102 ;1304.050.068 ;1304.054.114 ;1304.054.156 ;1308.050.130 ;1310.050.061 ;1310.050.160 ;1313.050.024 ;1313.062.005 ;1316.051.196 ;1349.043.002
Manufacturer:
For delivery options to your country, please do not hesitate to contact us!
Estimated Shipping
to Targovishte starts at
€3.11
outside Targovishte starts at
€3.21
outside Targovishte starts at
€3.09
to Targovishte starts at
€3.09
Rubber properties - Acrylnitrile-butadiene rubber (NBR):
Standard color: black
NBR rubber demonstrates excellent resistance to the effects of mineral oils. It also provides particularly good results with hydraulic oils, grease, diesel fuels plus other aliphatic hydrocarbons, diluted acids and alkaline solutions that do not contain aromatic or chlorinated additives. Its excellent mechanical properties, such as high resistance to pressure and abrasion, high stability and good temperature resistance (-20°С to +120 °С), ensure a wide application range for this rubber.
Advantages:
- good oil and fuel resistance (especially to hydraulic oils)
- good working temperature range: -20°С to +120 °С in oil
- good resistance to pressure
- good wear resistance and high tensile strength
- low swelling in water
Limitations:
- poor weather, light and ozone resistance
- poor resistance to polar fluids
- poor resistance to chlorinated hydrocarbons
- poor resistance to aromatic fluids
