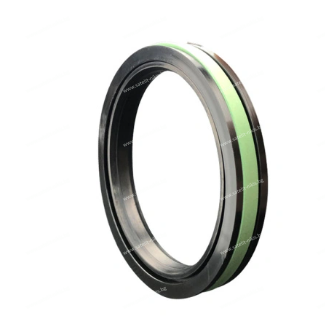

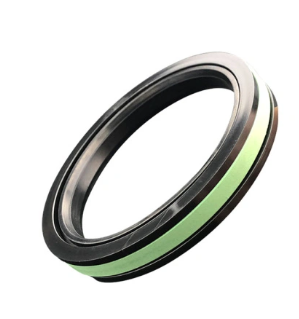

Hydraulic piston seal SPGW-100 100x85x12 NBR80/PTFE+Bronze/polyamide resin up to 400 bar KVK/China , KOMATSU 707-44-10180
-
Code:32100085120
-
Weight:0.023 Kgs
Product data
ØD=100 mm ; Ød=85 mm ; H=12 mm ; L=12.5 mm
Material: NBR80/PTFE+Bronze/polyamide resin
Application range (the following limit values cannot appear at the same time):
Pressure: ≤ 400 bar
Speed: ≤ 1.5 m/s
Temperature: -20°C ~ +120°C
Media: mineral-based hydraulic oils
Suitable for KOMATSU models:
Backhoeloaders/Багер-товарачи:
WB91R-5WB91R-5E0WB93R-5WB93R-5E0WB93S-5E0WB97R-5WB97R-5E0WB97S-5E0
Buldozers/ Булдозери:
D41A-3D41E-3D41E-3AD61E-12D61EX-12D61EX-12A-WD61PX-12D61PX-12A-WD85EX-15D85EX-15E0D85EX-15RD85PX-15D85PX-15E0D85PX-15R
Compactors/Уплътняващи машини:
WF450-3WF450T-1WF450T-1AWF450T-3
Crawler Loaders/ Верижни товарачи:
D31Q-20D31S-20D31SM-20D68ESS-12
Drum Trucks/Самосвали:
HM300-1HM300-1LHM300-2HM300-2 s/n A11001 and upHM300-2RHM300TN-1
Exavators /Багери:
PC120-6PC120-6E0-T2PC138US-2PC138US-2-APC138US-2-ACPC138US-2-ATPC138US-2EPC138USLC-2PC150-5PC158US-2PC158USLC-2PC35MR-1PC40-6PC40-7PC40R-7PC40R-8PC40T-7PC45-1PC45R-8PC50UD-2PC50UU-1PC50UU-2PC50UUM-2PC58SF-1PC60-6PC60-6CPC60-6SPC60-6ZPC60-7PC60-7-BPC60-7EPC60-7E-BPC60-7SPC60-7S-BPC60L-6PC70-6PC70-6SPC70-7PC70-7-BPC70-7EPC70-7E-BPC75UD-2PC75UD-2EPC75UD-3PC75US-3PC75UU-2PC75UU-2EPC75UU-3PC78MR-6PC78US-5PC78US-6PC80MR-3PC88MR-6PC88MR-8PC88MR-8(JPN) - FOR EU 2-PIECE BOOM APPLICATIONPW128UU-1PW130-6KPW98MR-6PW98MR-8PC78US-8
Graders/ Грейдери:
GD805A-1GD825A-2GD825A-2E0
Mobile Crushersand Recyclers/Мобилни дробилки и рециклиращи машини:
BR200T-1BR200T-1A
Wheel Loaders/ Колесни товарачи:
WA100-1WA100-3-HWA100-3-HWWA100-3-XWA100-3-XWWA100-3AWA100-3A-SWA100-3A-SNWA100-3A-SWWA100-5WA100-5-CNWA100-5-SNWA100-5-SSWA100-5-TKWA100SS-1WA100SSS-1WA120-3WA120-3CSWA120-3LWA120-3MCWA120L-3WA150-1WA180PT-3WA270-5WA270-5-SNWA300-1WA300-3A-SNWA300-3A-XWWA320-1WA320-3WA320-3CSWA320-5WA350-1WA350-3A-SWA350-3A-SNWA350-3A-SWWA380-5WA380-5-SNWA380-6WA380Z-6WA400-1WA400-3A-SWWA430-5WA430-5-SNWA450-2WA450-3WA450-3-HWA450-3AWA450-3A-TNWA450-3LWA450-3MCWA450-5LWA450L-3WA470-3 activeWA470-3 ActiveWA470-3WA470-5WA470-DZ-3 Serial No.20118 and upWA480-5WA480-5L
Manufacturer:
Zhongxingshun Sealing Products Factory
Estimated Shipping
to Targovishte starts at
€3.11
outside Targovishte starts at
€3.21
outside Targovishte starts at
€3.09
to Targovishte starts at
€3.09
SPGW is a two-way hydraulic piston seal composed a mofified PTFE+bronze element, one rubber seal ring and two anti-withdrawal retaining rings made of polyamide resin. SPGW is a seal for high pressure operation which improves the oil scraping ability of SPG. SPGW type is suitable for forklift arm cylinders, cantilever cylinders, bucket cylinders, bulldozer lifting cylinders, flat shovel cylinders, crane sliding cylinders, hydraulic suspension cylinders, dump trucks, presses, injection molding machines, etc.
Material:
Modified PTFE+bronze, high performance NBR with Shore hardness of 80 and polyamide resin
Scope of application:
Working pressure: ≤ 400 bar
Working temperature: - 20 ℃～+120 ℃
Reciprocating speed: ≤ 1.5m/s
Medium: General mineral-based hydraulic oil, water glycol hydraulic oil, oil-water emulsified hydraulic oil.
Installation: This type of seal can be used with an integral piston. To avoid damage to the sealing lip, measures should be taken to avoid sharp edges during installation.
