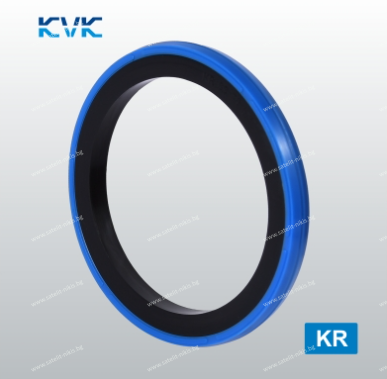

Hydraulic piston seal KR 70х54.5х6.3 NBR70+PU90 up to 300 bar KVK/China
-
Code:33070054064
-
Weight:0.023 Kgs
Product data
D=70 mm ; d=54.5 mm ; L=6.3 mm
Material: NBR70+PU90
Application range (the following limit values cannot appear at the same time):
Pressure: ≤ 300 bar
Speed: ≤ 0.5 m/s
Temperature: -35°C ~ +110°C
Media: mineral-based hydraulic oils
Manufacturer:
Zhongxingshun Sealing Products Factory
Estimated Shipping
to Targovishte starts at
€3.11
outside Targovishte starts at
€3.21
outside Targovishte starts at
€3.09
to Targovishte starts at
€3.09

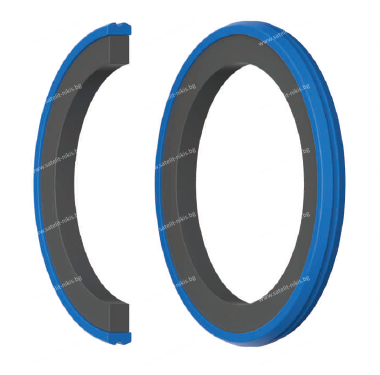

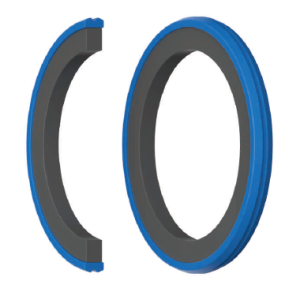

It consists of a contact ring (made of newly developed polyurethane) and an expansion element (with a square cross-section made of NBR rubber). Extremely high dynamic and static sealing performance, suitable for one-way action, excellent wear resistance, low-friction operation can be maintained throughout the working time, extremely high anti-extrusion performance, and can be simply installed on the built-in piston groove meets the standard IS07425/1 and the axial mounting length is short. By choosing the appropriate materials it can be adapted to special conditions of temperature or environment.
